A full-suspension trail e-mountain bike with 29" wheels, a Yamaha PW-X3 motor (85 Nm), an 800 Wh battery, and a RockShox Lyrik Select 150 mm fork.
Detailed Description
The brand Raymon combines German precision, big business experience, and a family tradition of over 100 years. It emphasizes the quality of its bikes, transparency, loyalty, reliability, quick…
More about the brand RaymonA full-suspension trail e-mountain bike with 29" wheels, a Yamaha PW-X3 motor (85 Nm), an 800 Wh battery, and a RockShox Lyrik Select 150 mm fork.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
Some parts of this page are translated automatically, so please excuse any imperfections.

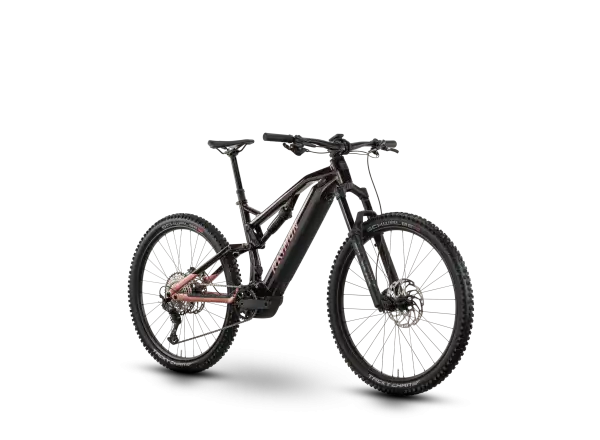

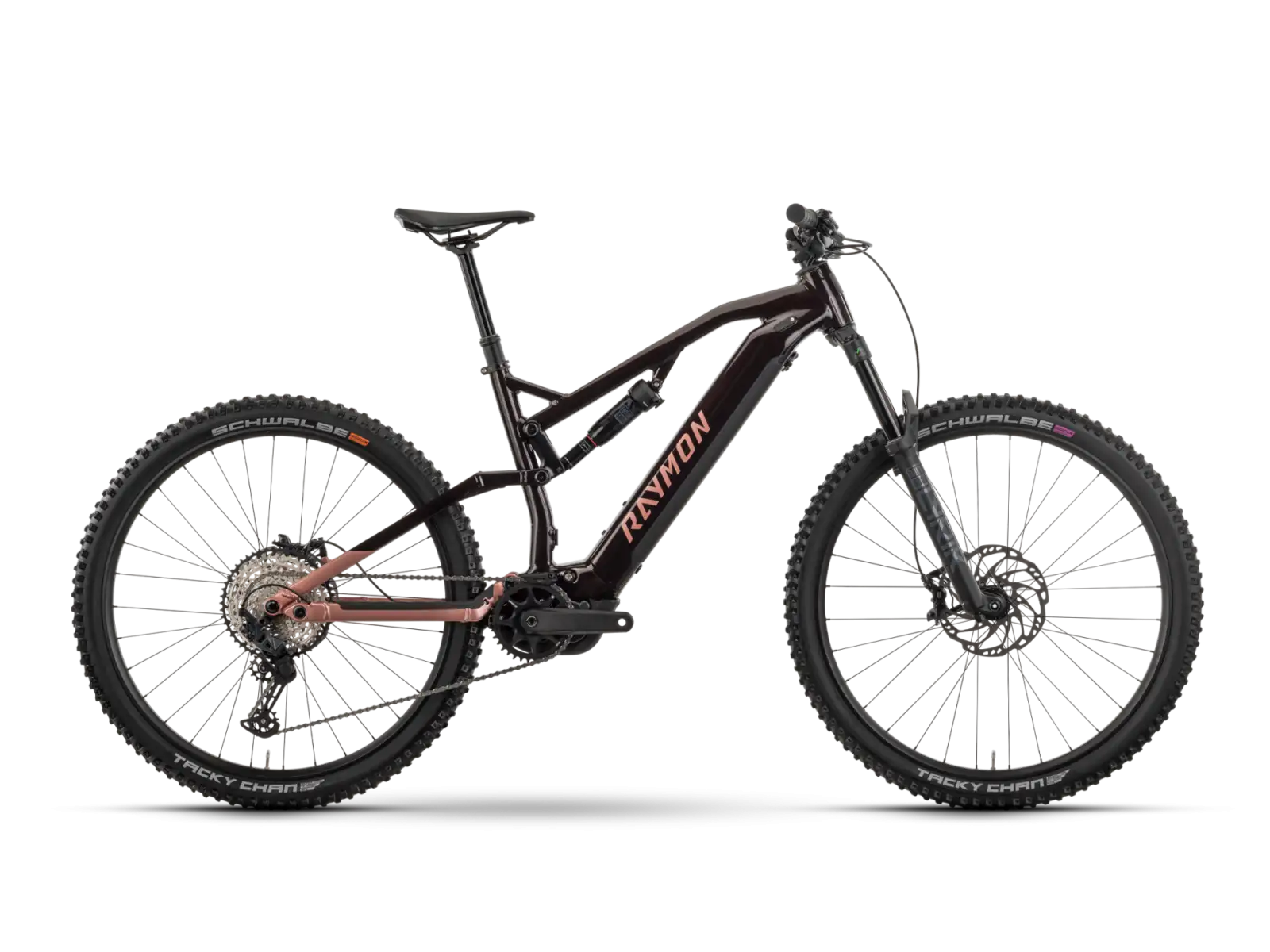

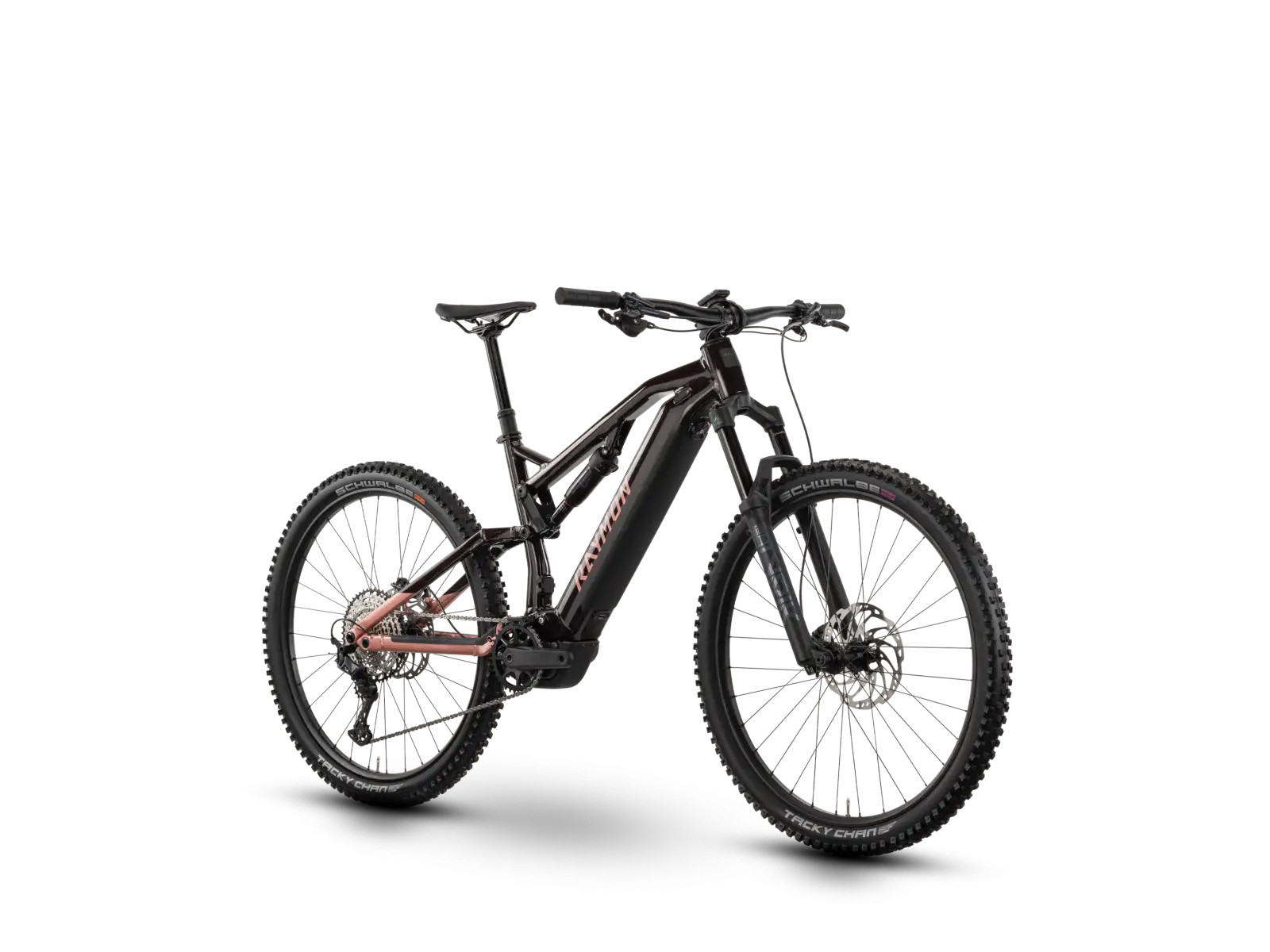

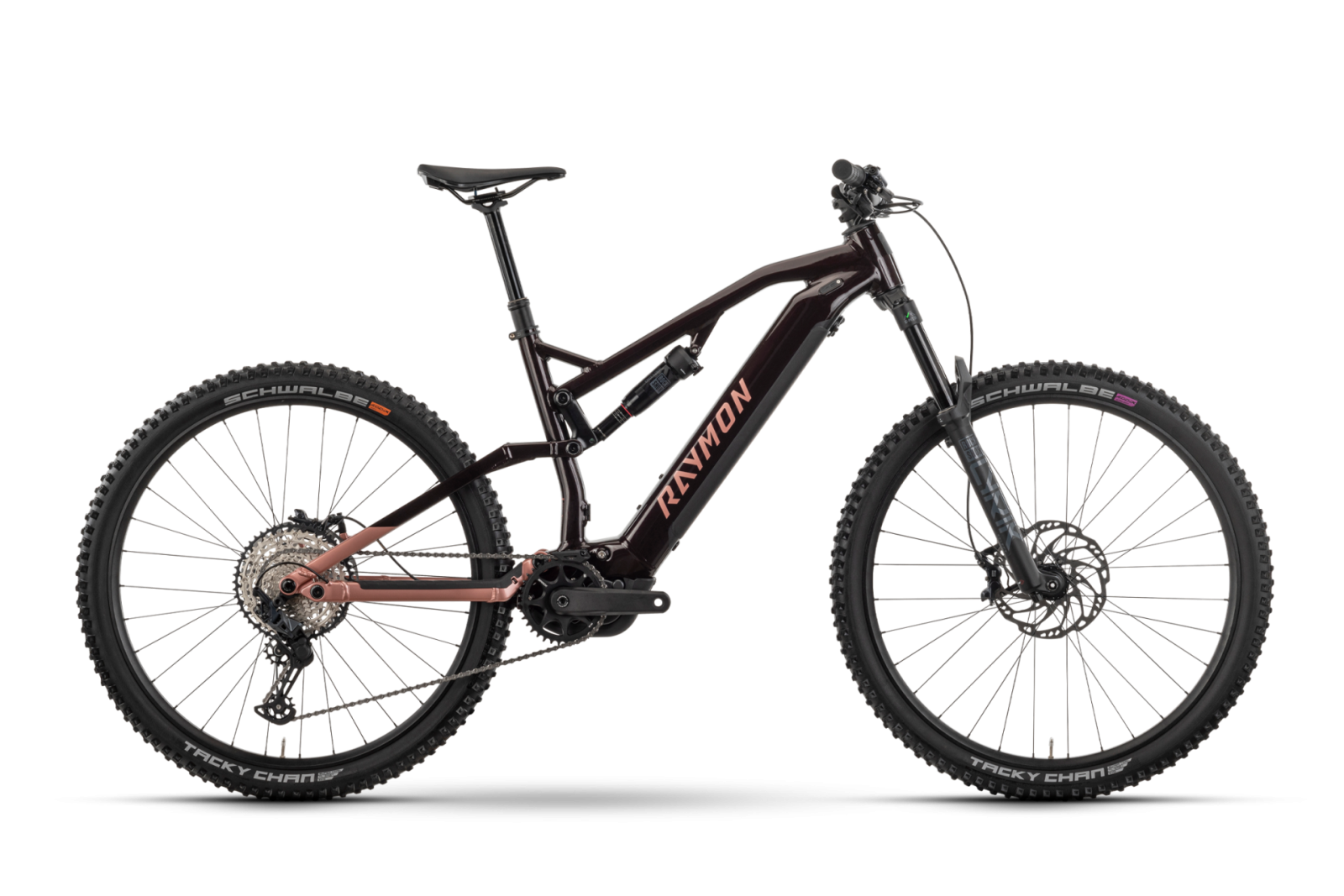

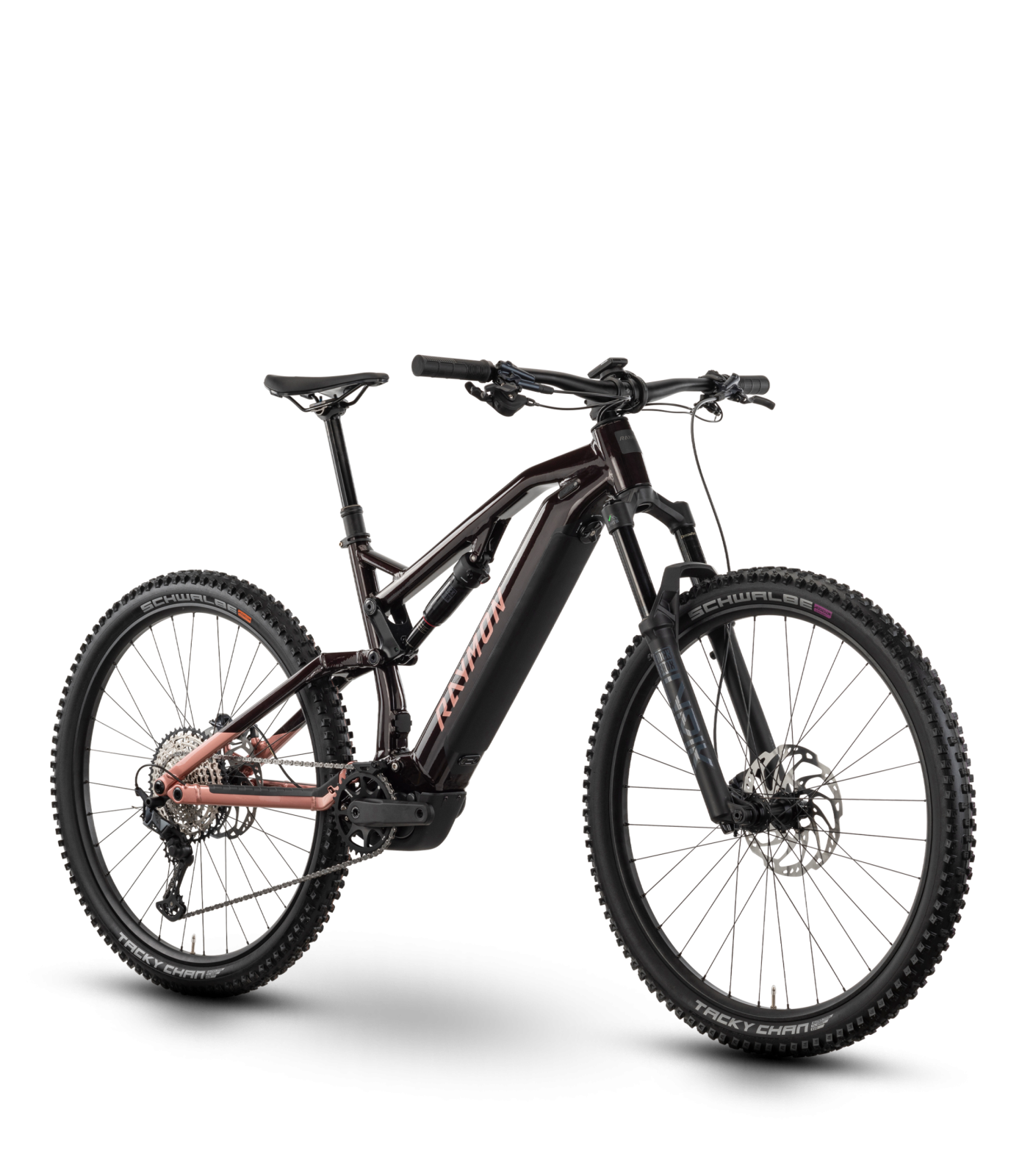

The Raymon Trailray 150 Pro is a full-suspension e-bike designed for mountain riding on trails and in technical terrain. It rolls on 29" wheels and pairs 150/140 mm of travel for all-mountain use. In terms of performance, it targets riders who prioritize traction, stability, and mid-drive motor power on longer climbs.
The frame is made from Alloy 6061 aluminum and uses a 29" wheel platform with 140 mm of rear travel. The battery is removable, and the drive unit is integrated as a mid-drive motor. The Boost standard with 15×110 mm and 12×148 mm axles supports wheel stiffness when leaning into corners. The concept is built around trail geometry for stability on descents and confidence on climbs.
Drivetrain: Shifting is handled by Shimano SLX Rapidfire Plus with 12 speeds and a Shimano SLX RD-M7100 rear derailleur. The Shimano CS-M7100 cassette offers a 10–51T range, paired with a Shimano CN-M6100 chain.
Brakes: Stopping power comes from Shimano SLX BR-M7120 four-piston hydraulic brakes. Shimano SM-RT64 rotors measure 203 mm and use Center Lock mounting.
Wheels and tires: The wheelset uses Raymon VR23/DT210 rims with Center Lock mounting and a 29" size. Schwalbe Tacky Chan Evo Super Trail tires feature the ADDIX Ultra Soft compound and measure 29×2.4.
Cockpit: Raymon Riser handlebars have a 35 mm clamp diameter, 9° backsweep, and 20 mm rise. A Raymon 34.9 mm dropper post is paired with a Raymon 143 VM Fit saddle and Raymon MTB lock on grips.
The combination of 29" wheels and trail travel improves rollover in rough terrain and tracking at higher speeds. The RockShox Lyrik Select with 150 mm of travel provides support through braking bumps and on landings. The RockShox Deluxe Select rear shock in 230×57,5 mm helps maintain traction on roots and rocks. The Yamaha PW-X3 motor with 85 Nm of torque helps you keep your cadence on steep climbs.
This bike is aimed at experienced riders looking for a full-suspension e-bike for technical trails and long alpine climbs. It’s well suited to riding with an emphasis on control on the descents, without sacrificing pedaling efficiency. Compared to lighter trail e-bikes with a smaller battery, it focuses on range and four-piston brakes.
EAN: 710497325141
E-bike range calculator
The stated range is approximate. The actual total range is influenced by several factors, such as the selected assistance mode, the technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique.
Manufacturer: R Raymon Bicycles GmbH, Rudolf-Diesel-Str. 35, 97424 Schweinfurt - Germany, +49 9721 5393596-30, service@raymon-bicycles.com, www.raymon-bicycles.com/en/
29", Alloy 6061, removable battery, boost, 140 mm
RockShox Lyrik Select, air, 150 mm, tapered
RockShox Deluxe Select, air, 230x57,5 mm
Yamaha PW-X3, 250/600 W, 85 Nm
800 Wh, 36 V
Schwalbe Tacky Chan Evo, Super Trail, ADDIX Ultra Soft, 62-622, 29x2.4
Raymon VR23/DT210, Center Lock, 15x110/12x148 mm
Shimano SLX, SL-M7100, Rapidfire Plus
Shimano SLX, RD-M7100, 12-S
Bottom bracket compatible with Yamaha PW-X3 motor
Shimano CS-M7100, 10-51T
Shimano CN-M6100
Shimano SLX, BR-M7120, 4-piston, hydraulic disc brake
Shimano SM-RT64, 203 mm, Center Lock
Raymon Riser 35 mm, Sweep: 9°, Rise: 20 mm
Raymon 35, 0°, Ahead
Raymon MTB, lock on
Raymon 143 VM Fit
Raymon, 34,9 mm, Dropper Post
24
Nebular red/pinky/black
M (17 - 18)
Mountain Biking, Electric Bicycles
Mens / UNI
Aluminum Alloy
Yamaha PW X3
800 Wh
Mid-Mount
29"
130-150 mm (All Mountain)
2025
Red, Pink, Black
The bicycle manufacturer reserves the right to change the bicycle specifications without notice. In exceptional cases, the delivered product may differ from the stated specifications and images to improve the availability or functionality of the bicycle.
