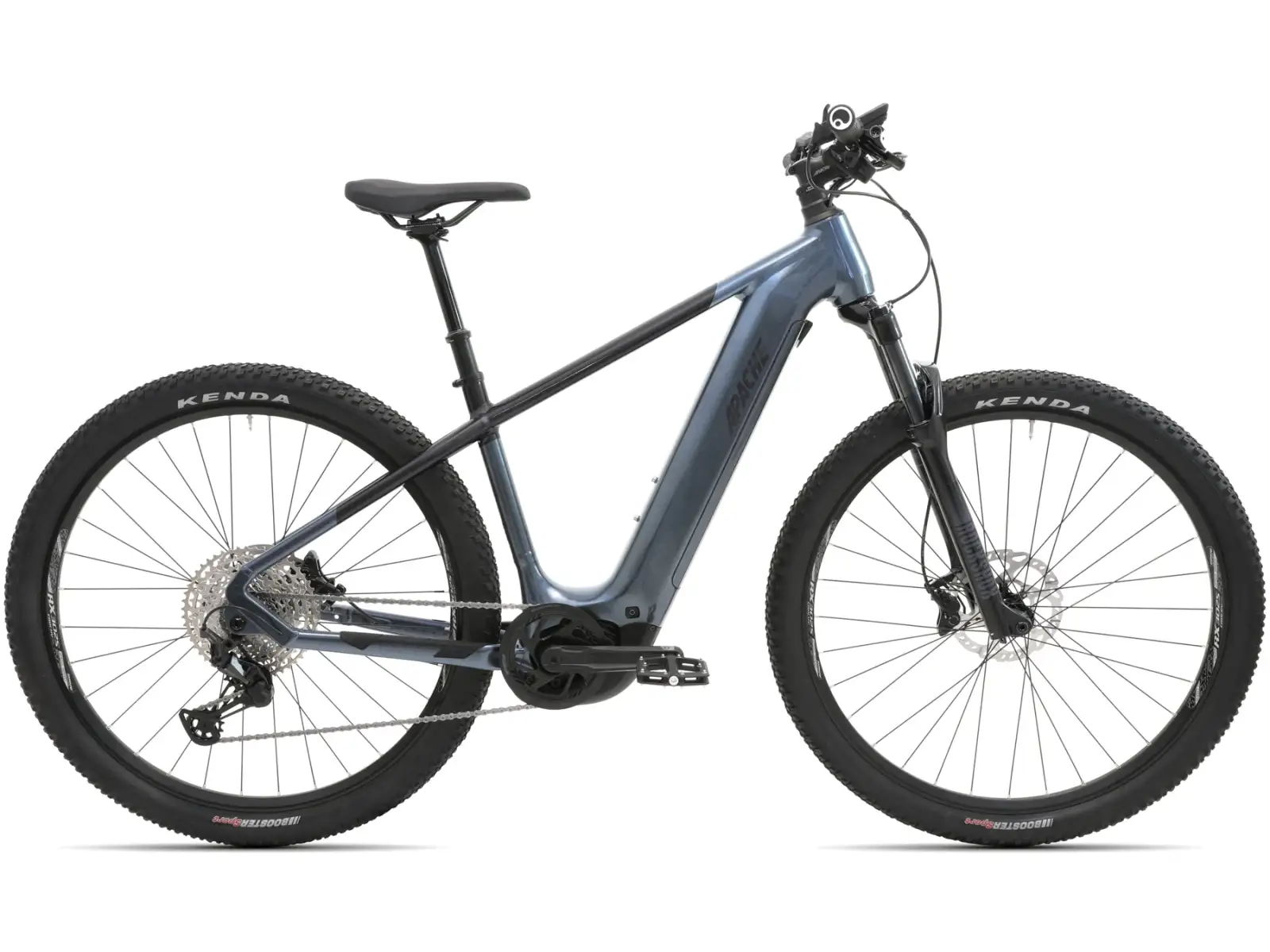

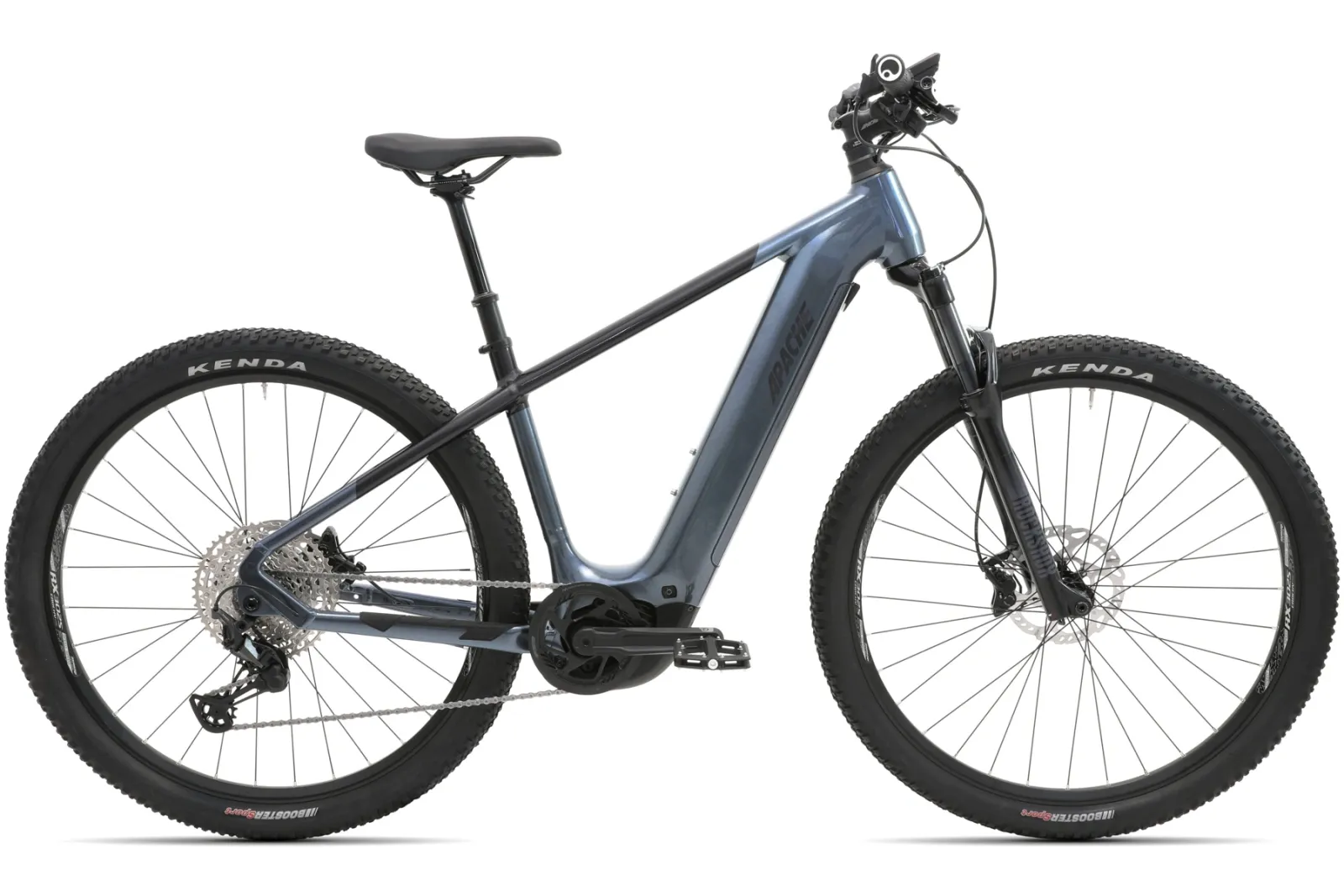

Apache Falcon 1 Bosch CX 800 Wh mountain e-bike steel

Category: 29" Hardtail Mountain Bikes
Brand: Apache
Our Code: 59610330

Our Code: 59610330

Apache Falcon 1 Bosch CX 800 Wh mountain e-bike steel

A mountain e-bike with 29" wheels, a Bosch Performance CX Gen. 5 motor (100 Nm), a PowerTube 800 Wh battery, and a Rock Shox Judy 120 mm fork.

Detailed Description

The first collection of bikes from the Apache brand rolled off the production line in 2001. It immediately established itself among well-known brands and gained favor with professional and hobby…

More about the brand Apache

Need any help?

Radek Technical Support

Contact Me

A mountain e-bike with 29" wheels, a Bosch Performance CX Gen. 5 motor (100 Nm), a PowerTube 800 Wh battery, and a Rock Shox Judy 120 mm fork.

Detailed Description

Choose a Variant Frame size charts

In stock

An expedition is possible today (delivery options)

Price Including VAT 3 719.00 €

Did you find a better price?

Add to Favourites Add to comparison Watchdog

Do you have a VAT number? Shop without VAT.

Shipping from 90.00 €

Returns possible
within 30 days

Description and specifications
Q&A
Reviews
Similar products

Apache Falcon 1 Bosch CX 800 Wh mountain e…

3 719.00 € In stock

Description

Some parts of this page are translated automatically, so please excuse any imperfections.

Apache Falcon 1 Bosch CX 800 Wh mountain e-bike steel is a hardtail mountain e-bike designed for trail riding and climbing. It’s built around the Bosch Smart System with a Bosch Performance CX Gen. 5 motor and an integrated 800 Wh battery. Its spec targets the higher-performance category for riders who prioritize drivetrain power, stability, and handling.

Frame and geometry

The Apache Falcon Bosch Al frame is an aluminum hardtail with internal cable routing. The geometry is trail-oriented, with a 68.5° head tube angle and a 74° seat tube angle. Chainstay length is 460 mm across sizes, which supports stability under power. The bike is available in sizes M, L, XL, and XXL and uses a semi-integrated tapered headset Acros blocklock 44/56 mm.

Components

Drivetrain: Shimano Deore SL-M6100 shifting runs a 1x12 setup with a Shimano XT RD-M8100-SGS Shadow Plus rear derailleur. The Shimano Deore CS-M6100 cassette has a 10–51 tooth range, and the FSA Bosch crank arms are 170 mm.

Brakes: Shimano BR-MT420 hydraulic four-piston brakes use Shimano BL-MT401 levers. Shimano SM-RT64 CL rotors measure 180/180 mm.

Wheels and tires: The wheels use Remerx e-Rocky RX 3025 rims and Shimano MT410 Boost and Shimano MT510 Boost hubs. Kenda Booster tires measure 29 x 2.4".

Cockpit: Apache Al handlebars have a 31.8 mm diameter and a width of 760 mm. The Tranz-X 30.9 mm dropper post offers adjustable travel up to 150 mm, and the grips are Ergon GA20.

Ride characteristics

The combination of 29" wheels and 2.4" tires inspires confidence on rough surfaces and holds its line through faster sections. The Rock Shox Judy TK RL-RC fork with 120 mm of travel helps calm the front end off-road and increases control on steeper descents. The 68.5° trail angles and longer wheelbase support stability at higher speeds. The Bosch Performance CX Gen. 5 motor with 100 Nm makes climbs easier, and the 10–51 cassette range helps you keep your cadence even on long ascents.

Who it’s for

Falcon 1 is designed for experienced riders who want a hardtail with an emphasis on efficiency on climbs and predictable trail behavior. It’s well suited to longer rides, technical climbs, and fast forest loops, where you’ll appreciate the 800 Wh battery. In its class, it stands out with the combination of Bosch drive system and twelve-speed Shimano shifting with an XT derailleur.

Key specifications

Frame: Apache Falcon Bosch Al, aluminum hardtail, internal cable routing

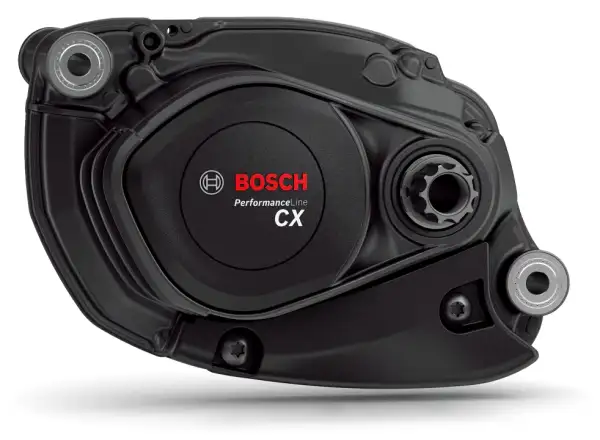

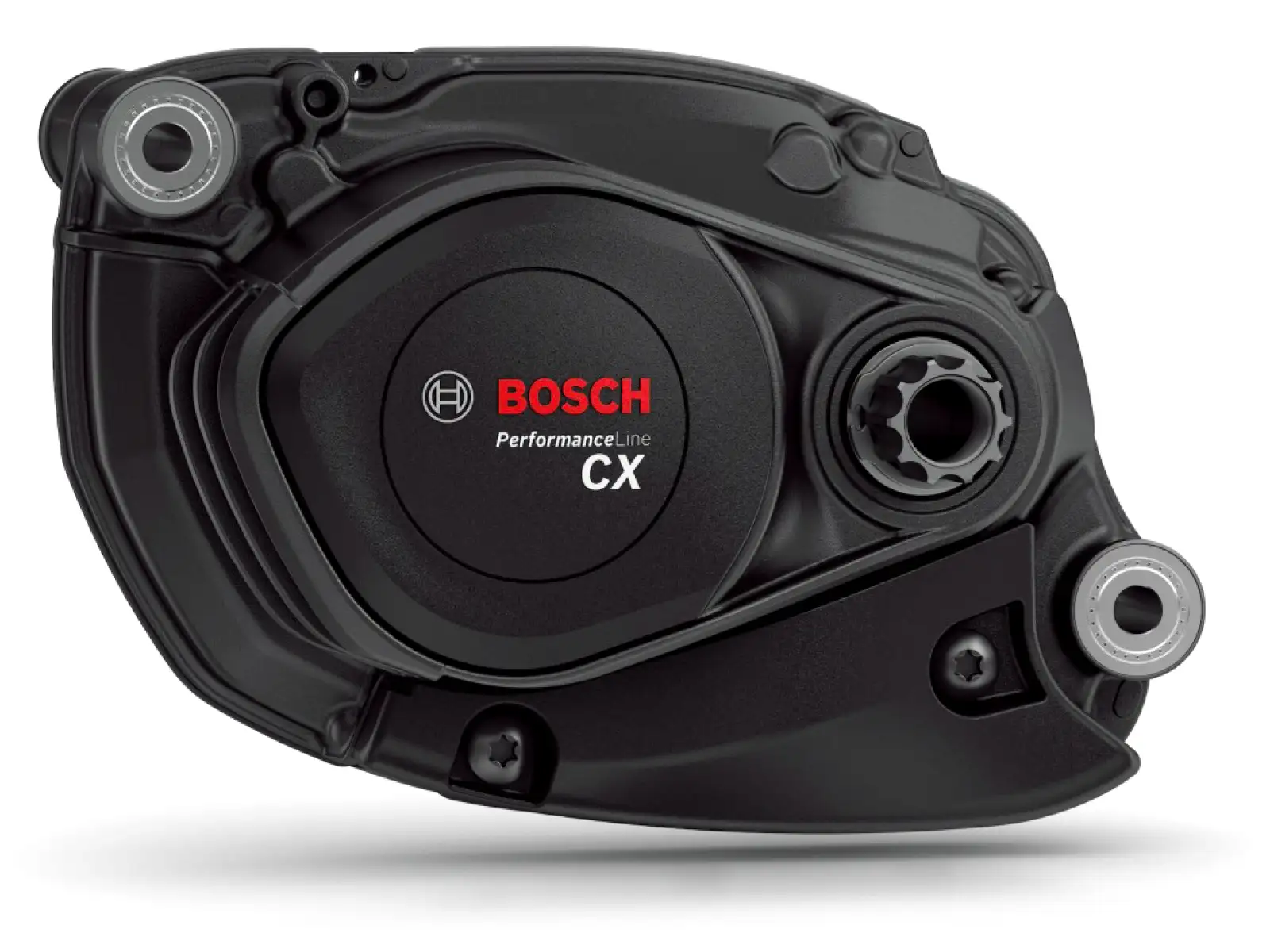

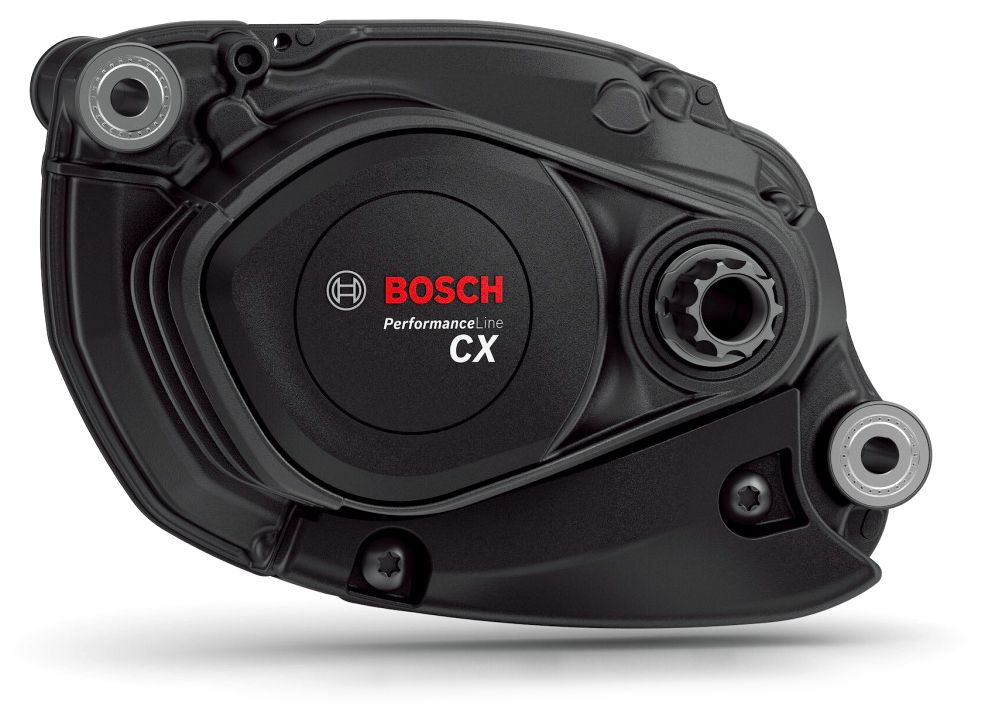

Motor: Bosch Performance CX Gen. 5, 100 Nm, 750 W

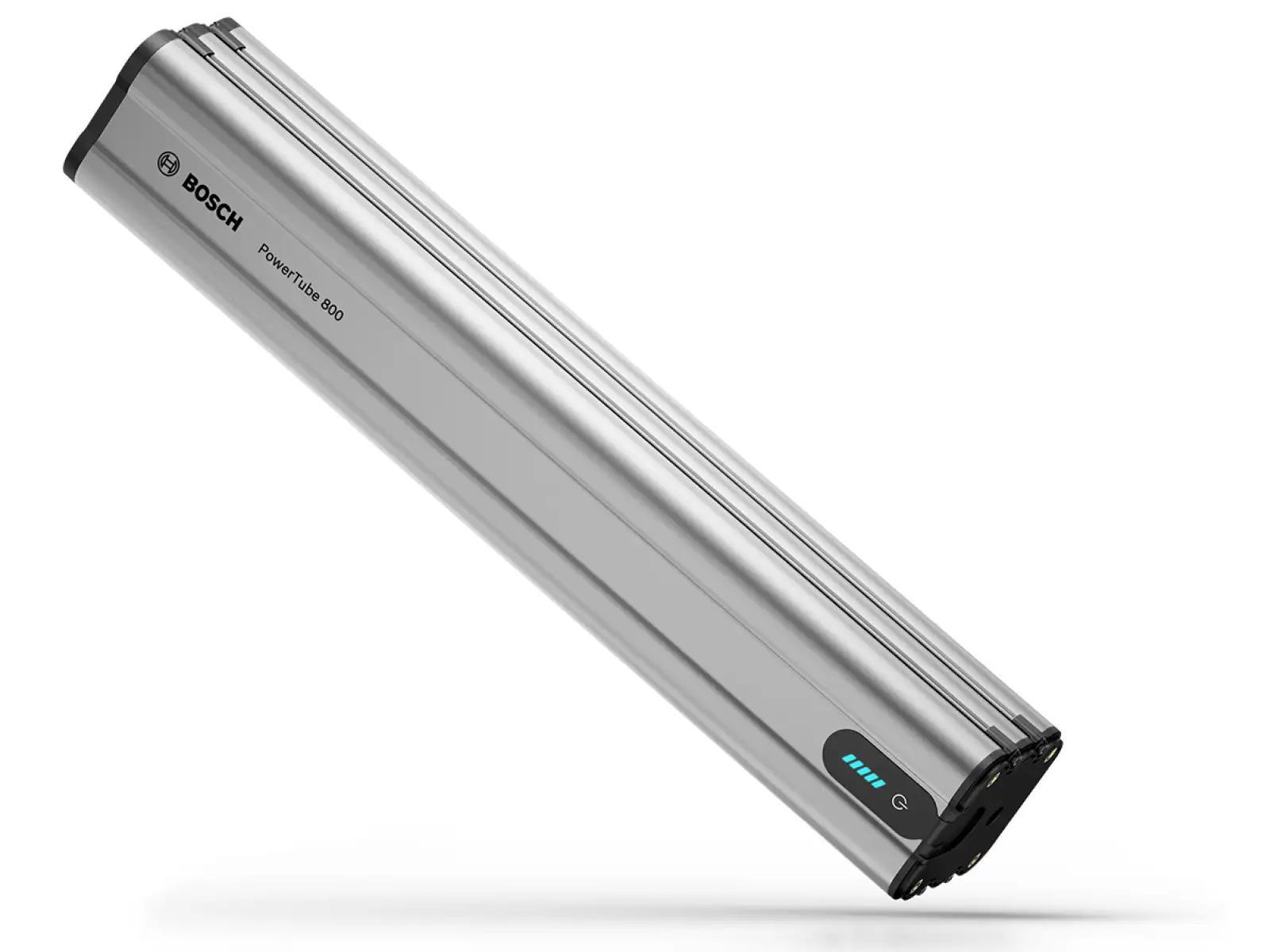

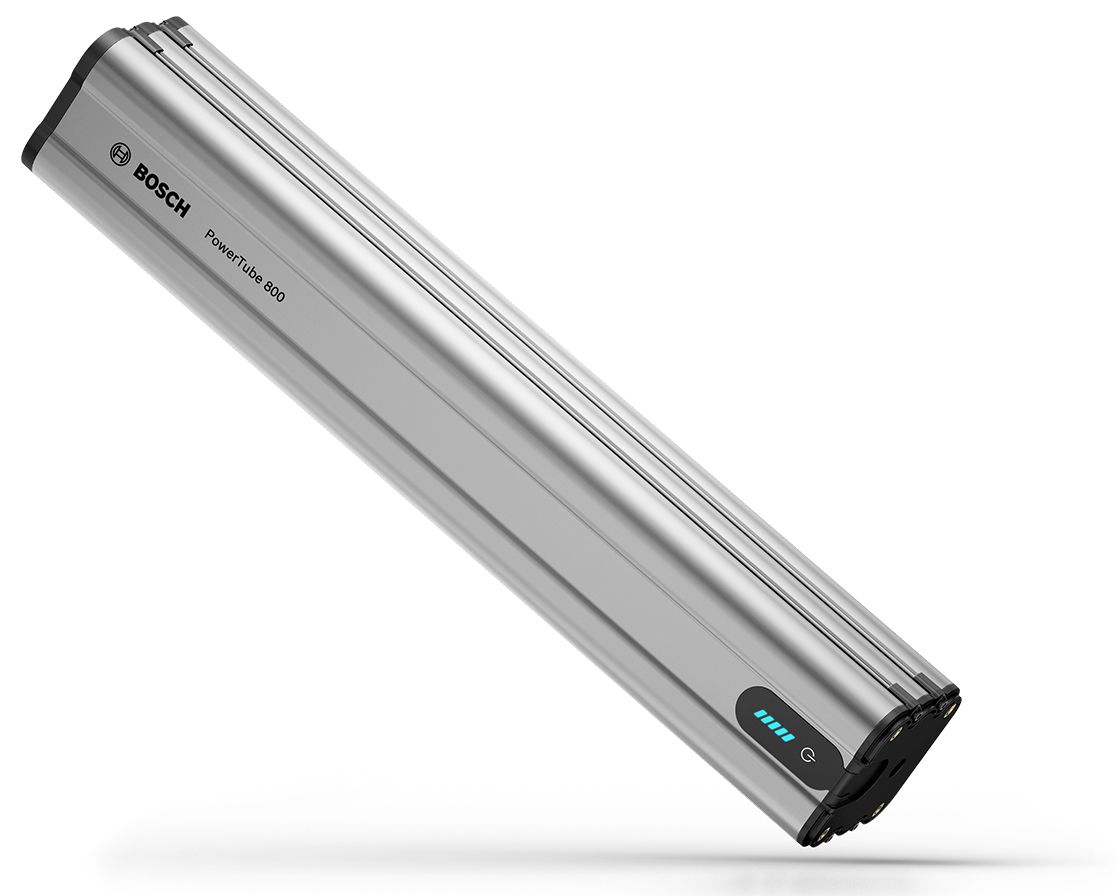

Battery: Bosch PowerTube 800 Wh / 22,2 Ah

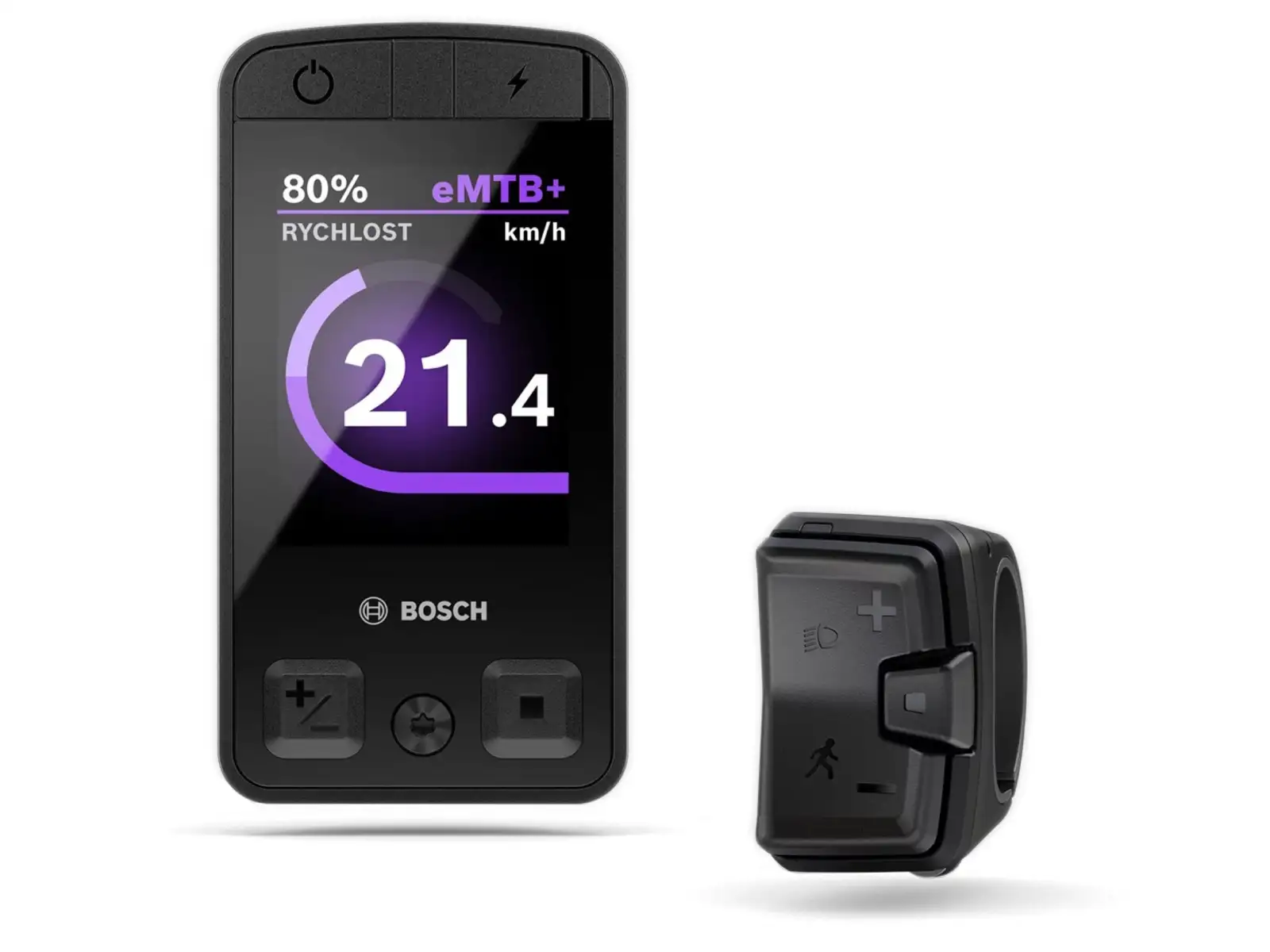

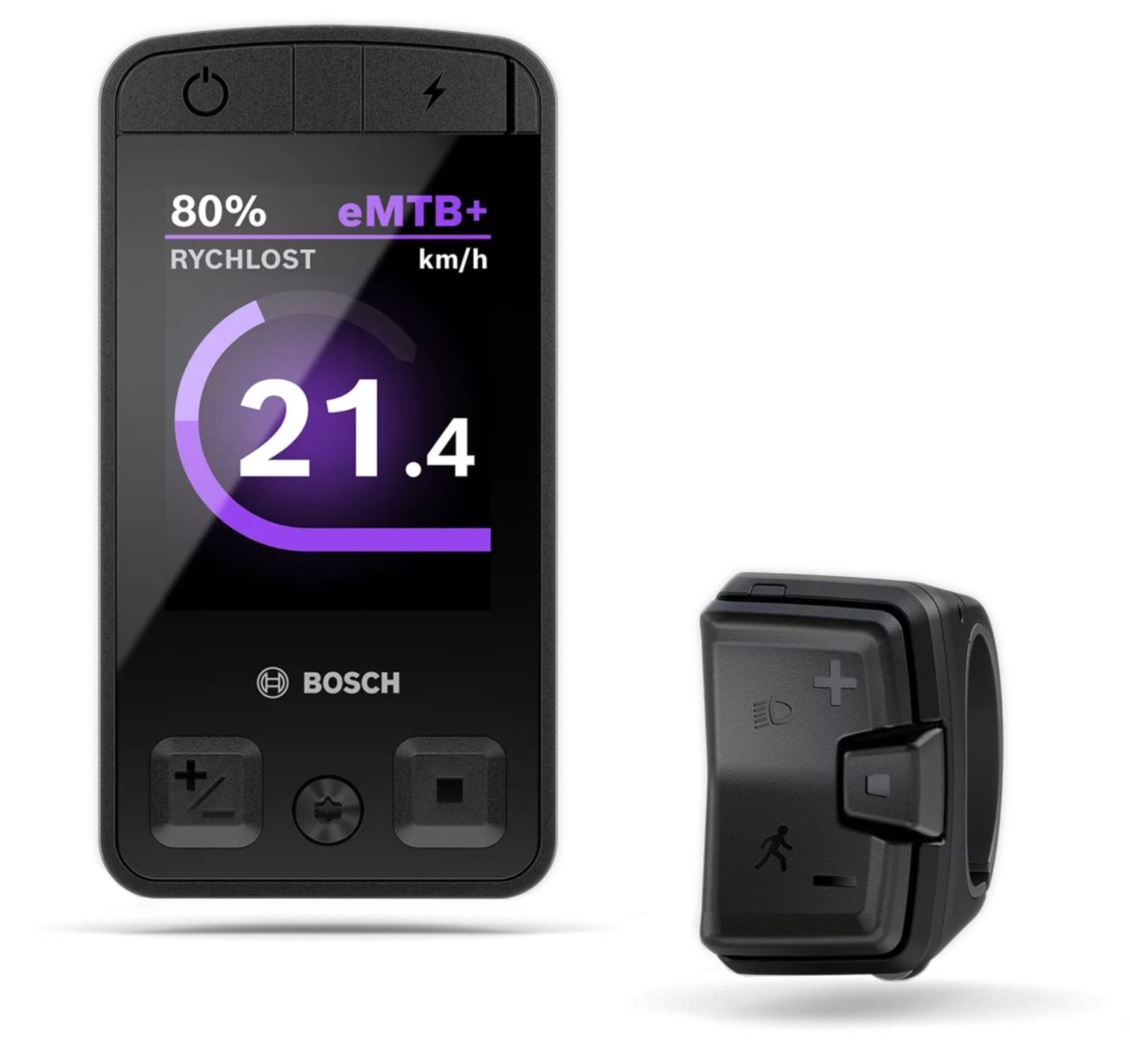

Display: Bosch Kiox 300, Bosch Smart System
Fork: Rock Shox Judy TK RL-RC, air, 120 mm travel
Shifting: Shimano 1x12, Deore SL-M6100 + XT RD-M8100-SGS derailleur, 10–51 cassette
Brakes: Shimano BR-MT420, hydraulic four-piston, 180/180 mm rotors
Wheels: 29", Remerx e-Rocky RX 3025 rims, Kenda Booster 29 x 2,4" tires

EAN: 5961033000007

Manufacturer: DajSport s.r.o., U zámečku 197, 373 82 Boršov nad Vltavou, www.apache-bike.cz, info@apache-bike.cz

You might be interested in

How to check product availability?

Student Discounts

Bicycle Frame Size Chart

Claims and Returns

Shipping and Payment

Specifications

Frame Set

Frame

Apache Falcon Bosch Al, aluminum, internal cable routing, hardtail

Headset

Semi-integrated tapered Acros blocklock, 44/56 mm

Fork

Air Rock Shox Judy TK RL-RC, travel 120 mm

Colour

Steel blue / black

Wheels

Tires

Kenda Booster 29 x 2.4"

Rims

Remerx e-Rocky RX 3025

Hubs

Front: Shimano MT410 Boost, thru-axle 15 x 110 mm; Rear: Shimano MT510 Boost, thru-axle 12 x 148 mm

Drivetrain

Shifters

Shimano Deore SL-M6100, Rapidfire Plus

Rear Derailleur

Shimano XT RD-M8100-SGS, Shadow Plus

Crankset

FSA Bosch 170 mm, 34T

Cassette

Shimano Deore CS-M6100, 10-51T

Bottom Bracket

Integrated (Bosch motor)

Chain

Shimano M6100

Pedals

Platform VP-539

Components

Handlebars

Apache Al 31.8 x 760 mm, rise 15 mm

Stem

Apache Al 31.8 x 60 mm, 3°

Grips

Ergon GA20

Brakes

Hydraulic 4-piston Shimano BR-MT420

Brake Levers

Hydraulic Shimano BL-MT401

Rotors

Shimano SM-RT64 CL (180/180 mm)

Saddle

Apache memory foam

Seatpost

Dropper Tranz-X 30.9 x 492 mm, adjustable travel max. 150 mm

General Information

Extra

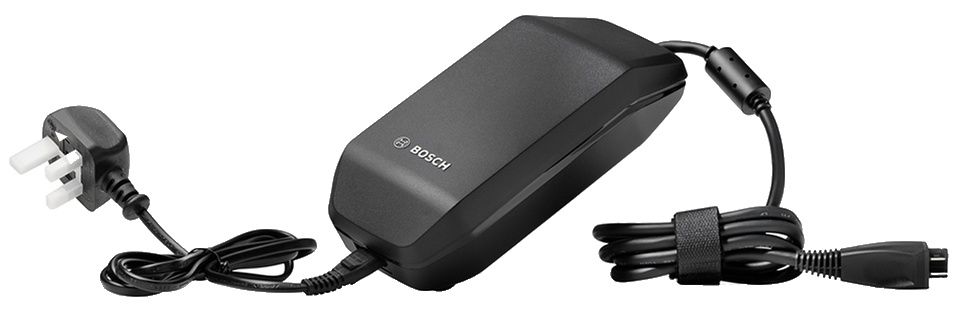

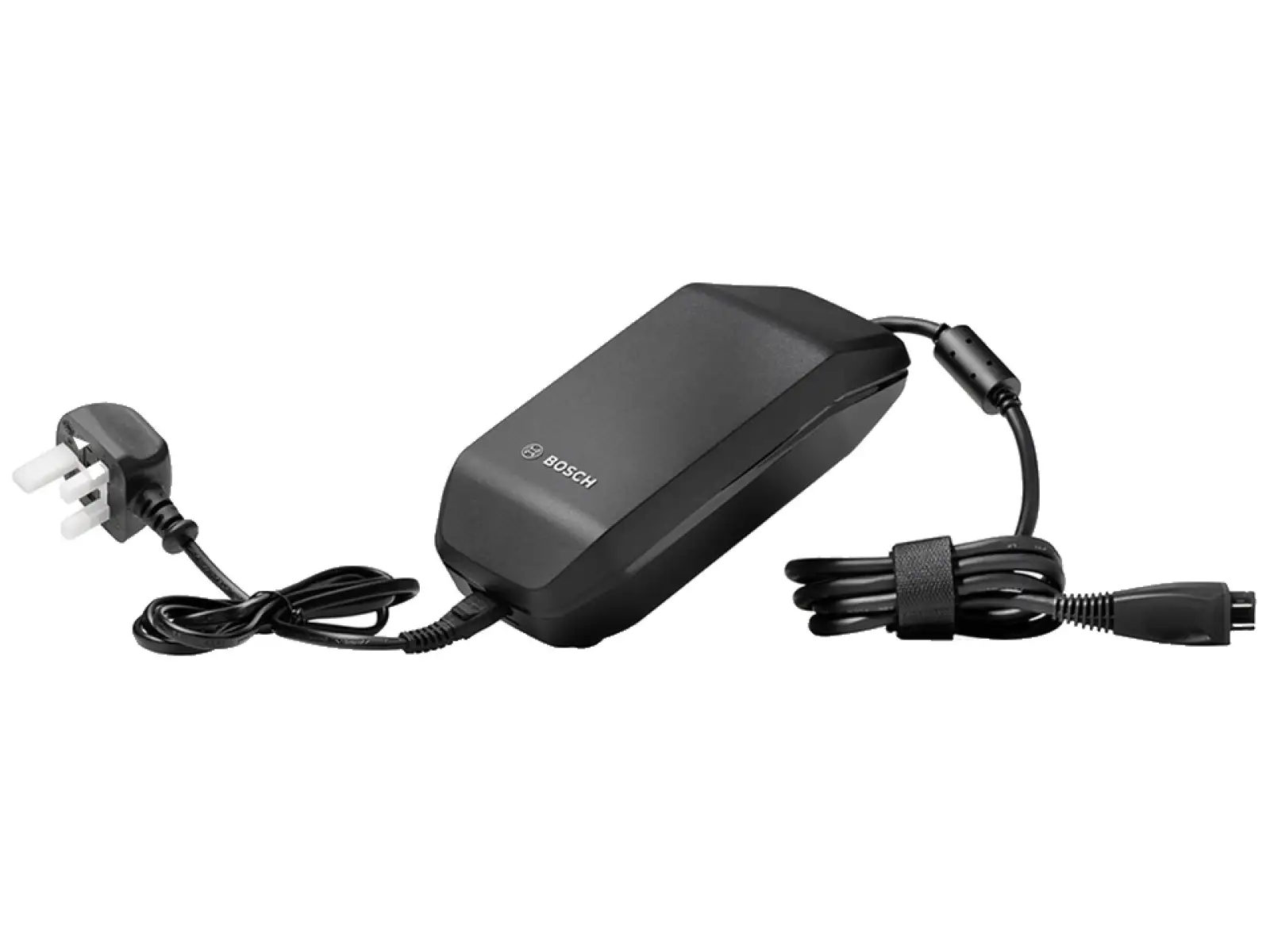

Motor Bosch Performance CX Gen. 5, 100 Nm, 750 W; Battery PowerTube 800 Wh / 22.2 Ah; Display Bosch Kiox 300; Charger Bosch Charger 4.0 A; Wheel size 29"

Frame Size

M (17 - 18)

Frame Material

Steel

Designed for

Mens / UNI

Fork Travel

120 mm

Gearing

1x12

Brake Type

Disc

Model Year

2026

Colour

Blue, Black

Activity

Mountain Biking, Electric Bicycles

The wheel manufacturer reserves the right to change the wheel specifications without notice. In exceptional cases, the delivered product may differ from the specified specifications and images to improve the availability or functionality of the wheel.
