A full-suspension trail mountain bike with an aluminum frame, a Fox 36 fork with 150 mm of travel, Sram GX Eagle 1x12 components, and 130 mm of rear shock travel.
Detailed DescriptionA full-suspension trail mountain bike with an aluminum frame, a Fox 36 fork with 150 mm of travel, Sram GX Eagle 1x12 components, and 130 mm of rear shock travel.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
Some parts of this page are translated automatically, so please excuse any imperfections.

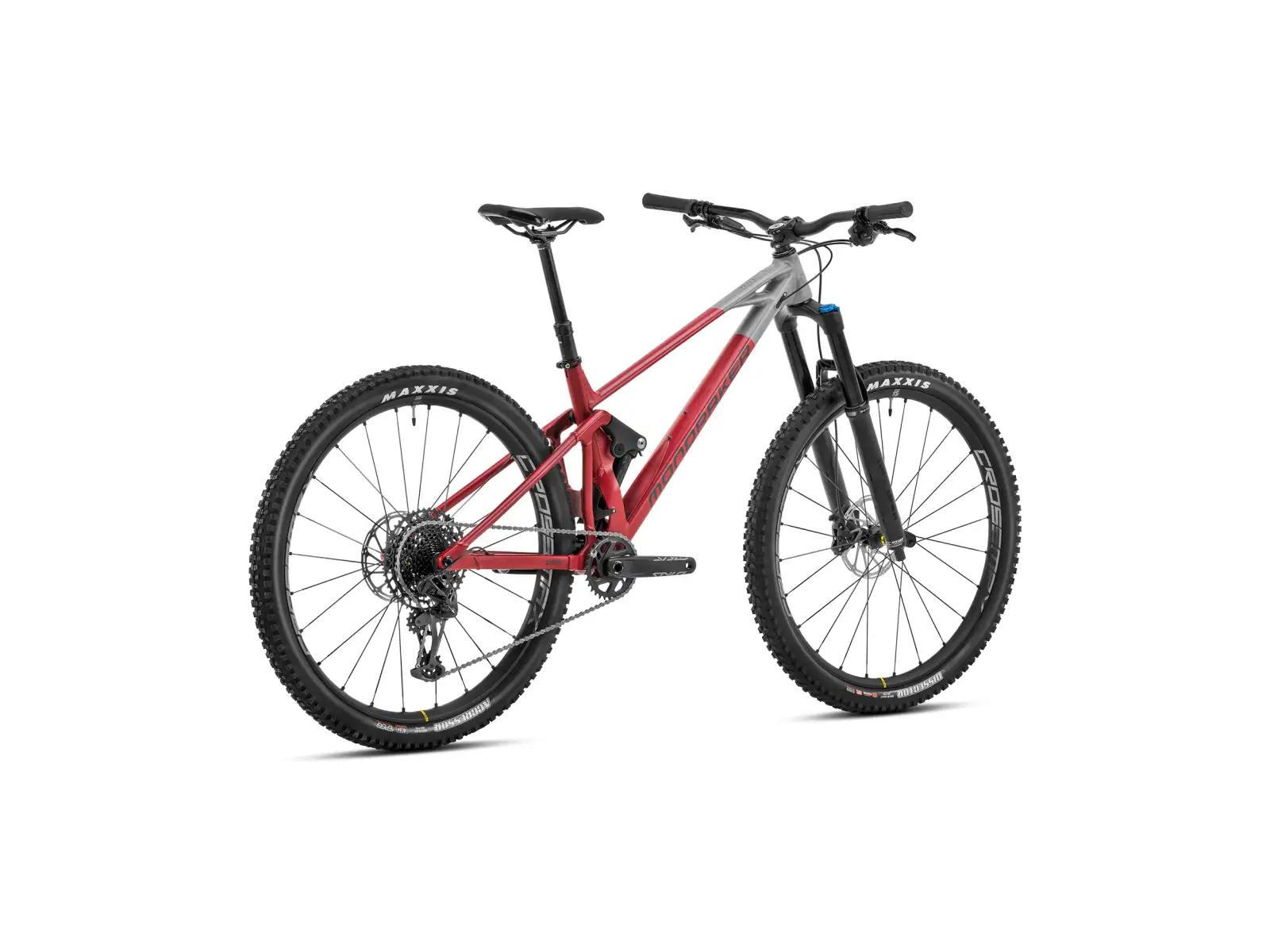

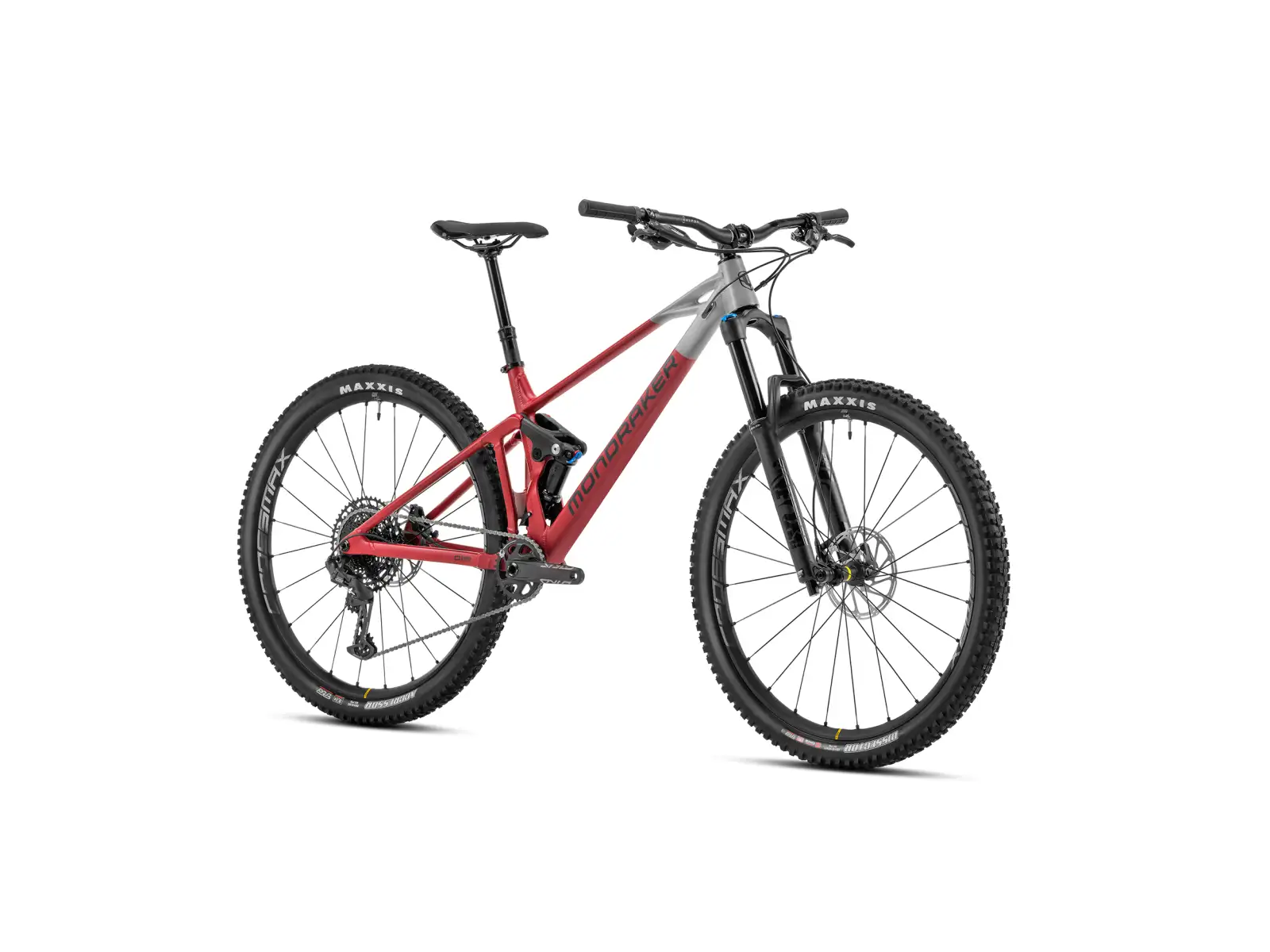

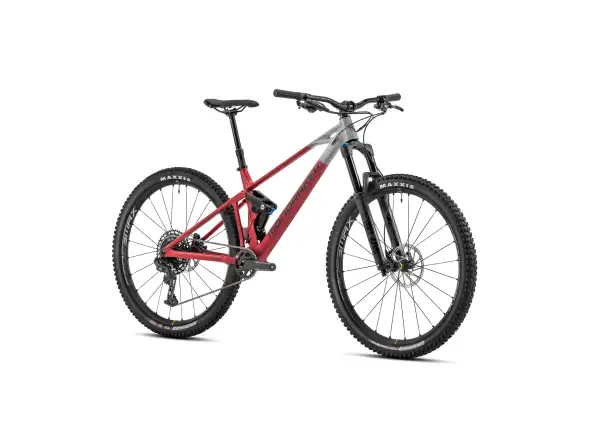

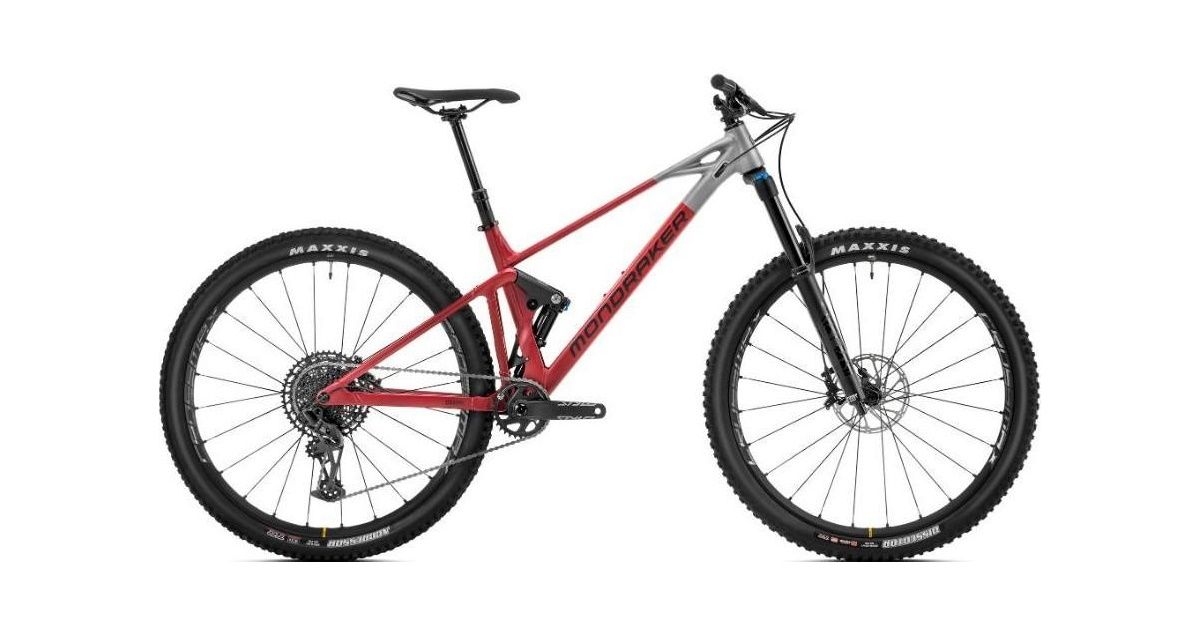

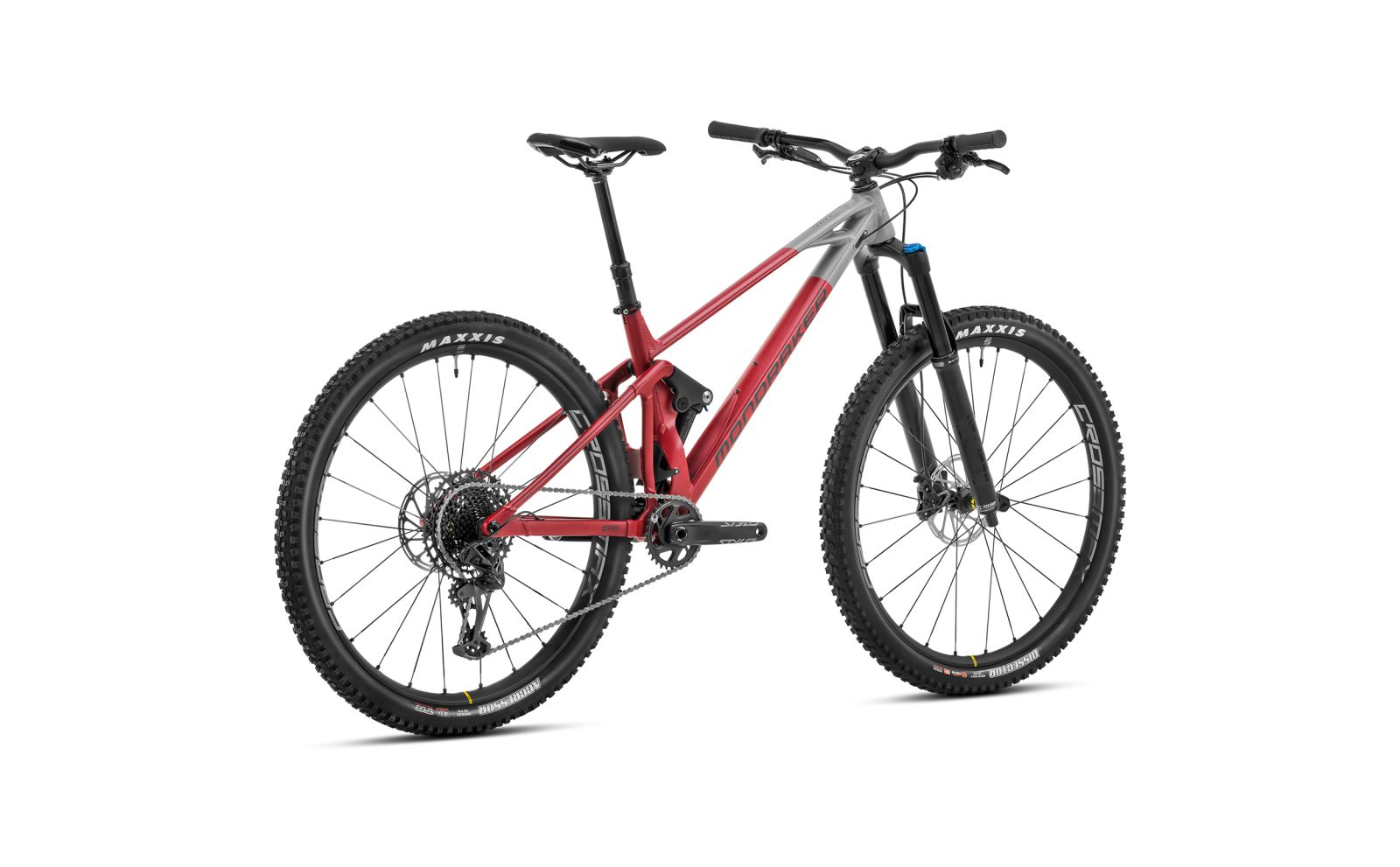

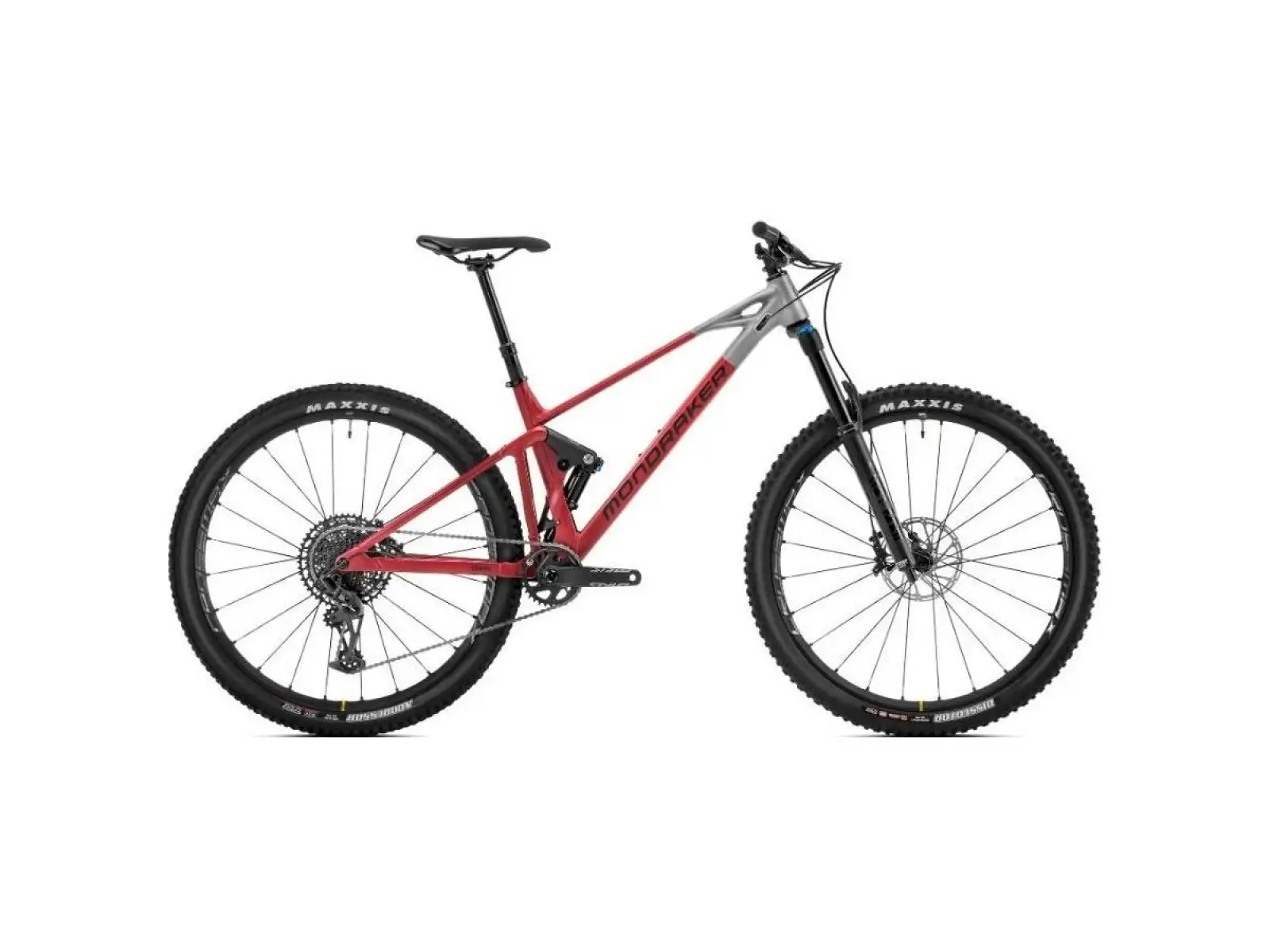

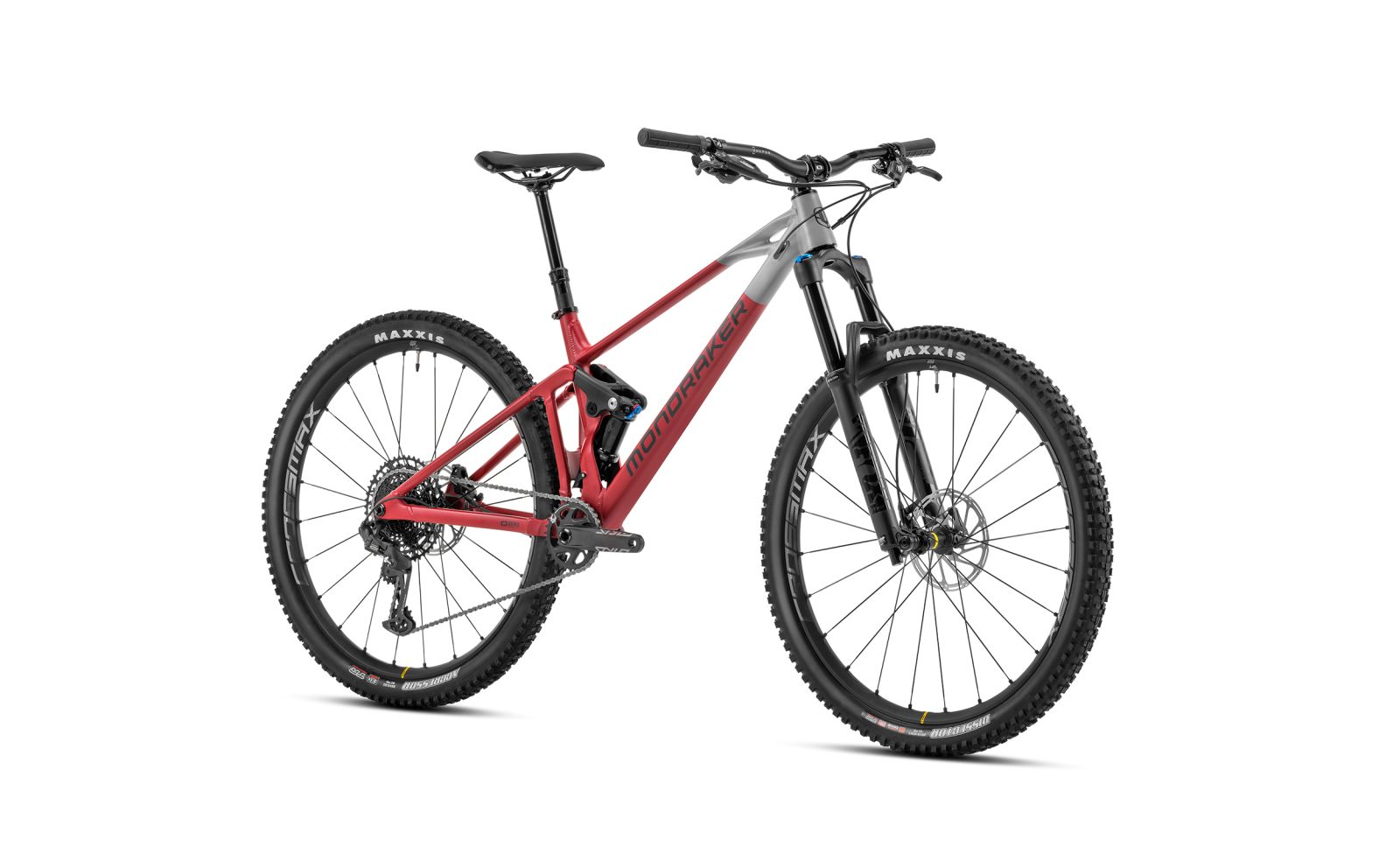

Mondraker Raze R full-suspension cherry red/nimbus grey is a trail MTB on big wheels for riders who want one bike for technical trails as well as longer climbs. It sits in the mid to upper performance class thanks to Fox suspension and four-piston brakes. The bike weighs 14.9 kg, which matches its more robust trail focus.
The foundation is the Raze 29 frame made from 6061 aluminum alloy with Stealth Evo technology and hydroformed tubing. The rear end uses the Zero Suspension system with 130 mm of travel. Forward Geometry is aimed at downhill stability and confidence at higher speeds. The frame is designed for a Boost 12×148 mm axle and a BSA 73 mm bottom bracket.
The Onoff Saturn headset features a tapered 1-1/8" to 1-1/2" design and ACB sealed bearings. The bike is produced in sizes S, M, L, and XL. The cherry red/nimbus grey color scheme matches its sporty trail focus.
Drivetrain: Sram Trigger NX Eagle shifting runs 1×12. The Sram GX Eagle rear derailleur shifts the Sram XG-1230 11–50-tooth cassette via a Sram DUB BSA 73 mm bottom bracket.
Brakes: Sram G2 R hydraulic disc brakes have four pistons. Sram Centerline rotors are 180 mm front and rear.
Wheels and tires: Mavic CrossMax XL S wheelset is 29" with a 30 mm internal rim width. Tires are a Maxxis Dissector 29×2.4 WT up front and a Maxxis Aggressor 29×2.3 in the rear.
Cockpit: Onoff Sulfur 1.0 handlebars are 800 mm wide with a 31.8 mm clamp diameter. The Onoff Pija dropper post has internal routing and 125–170 mm of travel depending on frame size.
The combination of a 150 mm Fox 36 fork and 130 mm of rear travel puts the bike in the trail to all-mountain category. Forward Geometry together with 29" wheels increases composure at higher speeds and support in rough sections. The Zero Suspension system limits unwanted bob while pedaling and maintains traction on roots. Four-piston brakes and wider-profile tires help with control on steep descents.
Raze R is designed for more experienced riders who are looking for a balance between climbing efficiency and descending capability. It suits natural trails, technical descents, and all-day rides with long climbs. Compared to a pure marathon full-suspension bike, it offers more travel and confidence in tougher terrain.
EAN: 8435392857994
Manufacturer: Mondraker SL (Sociedad Limitada), Calle Magallanes 1, 03600 Elda, Alicante, Španělsko, www.mondraker.com, infoweb@mondraker.com, +34 965 063 424
Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, Boost 12x148mm, BSA 73mm
Onoff Saturn tapered (1-1/8" to 1-1/2"), ACB sealed bearings
Fox 36 29 Float GRIP EVOL Rhythm, 150mm, Sweep adjust compression, Low-speed rebound, Boost 15x110mm, offset 44mm
Fox Float DPS LV EVOL Performance, 205x57.5mm, Trunnion top mount, 3-position Open/Mid/Lock
Cherry red / Nimbus grey
Mavic CrossMax XL S, 29 Boost, 30mm inner width, Hookless, Tubeless Ready
Front: Maxxis Dissector 29x2.4 WT, 3C MAXX TERRA, EXO+, 120TPI, Tubeless Ready / Rear: Maxxis Aggressor 29x2.3, Dual compound, EXO, 60TPI, Tubeless Ready
Mavic CrossMax XL S, 29 Boost, 30mm inner width, Hookless, Tubeless Ready
Infinity hub, Boost 15x110mm (front) / 12x148mm (rear), ID360, IS 6-bolt
24 straight-pull double butted spokes
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 12s
Truvativ Stylo 7k Eagle, Boost, DUB axle / 32T aluminum CNC, X-SYNC 2
Sram XG-1230, 11-50T, 12s
Sram DUB BSA, sealed bearings, 73mm
Sram NX Eagle, 12s, Powerlock
Onoff Sulfur 1.0 double butted 6061 alloy, width 800mm, rise 20mm, 31.8mm barbore
Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore
Onoff Twin, 1lock-on, 135mm
Sram G2 R, 4-piston hydraulic
Sram G2 R, tool-free reach adjustment
Sram Centerline 180mm (front) / 180mm (rear), IS 6-bolt
MDK series PU 2023
Onoff Pija dropper internal, 31.6mm (travel 125-170mm depending on frame size)
14.9
M (17 - 18)
Aluminum Alloy
Mens / UNI
1x12
130-150 mm (All Mountain)
Red, Grey
Mountain Biking
The bicycle manufacturer reserves the right to change the bicycle specifications without prior notice. In exceptional cases, the delivered product may differ from the listed specifications and images due to improvements in availability or the bike’s functionality.
