A full-suspension e-bike with 27.5" wheels, a Bosch Performance Line PX motor (90 Nm), a Bosch PowerTube 800 Wh battery, and a Shimano Cues 11-speed derailleur.
Detailed Description
The brand Raymon combines German precision, big business experience, and a family tradition of over 100 years. It emphasizes the quality of its bikes, transparency, loyalty, reliability, quick…
More about the brand RaymonA full-suspension e-bike with 27.5" wheels, a Bosch Performance Line PX motor (90 Nm), a Bosch PowerTube 800 Wh battery, and a Shimano Cues 11-speed derailleur.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
More informationSome parts of this page are translated automatically, so please excuse any imperfections.

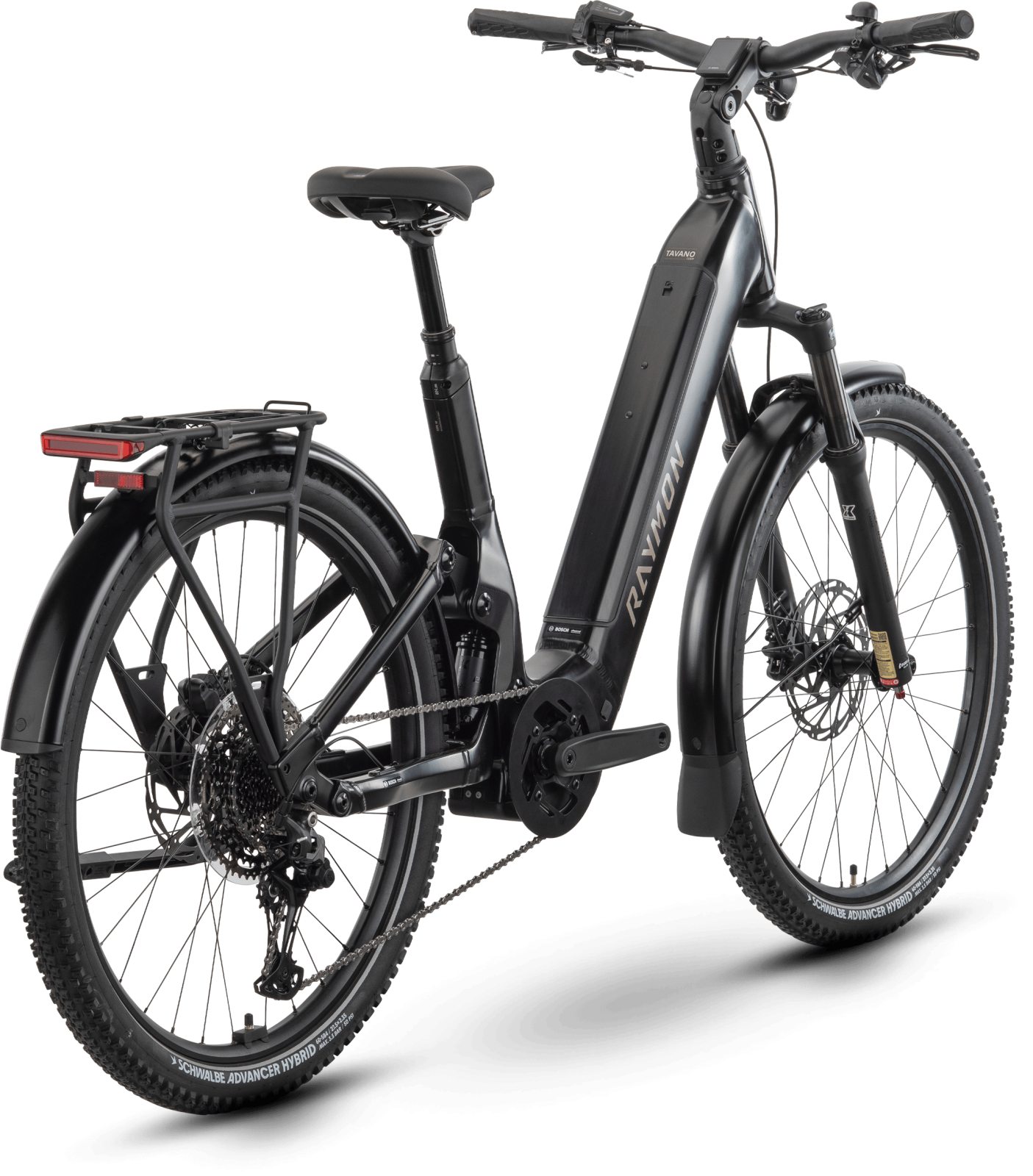

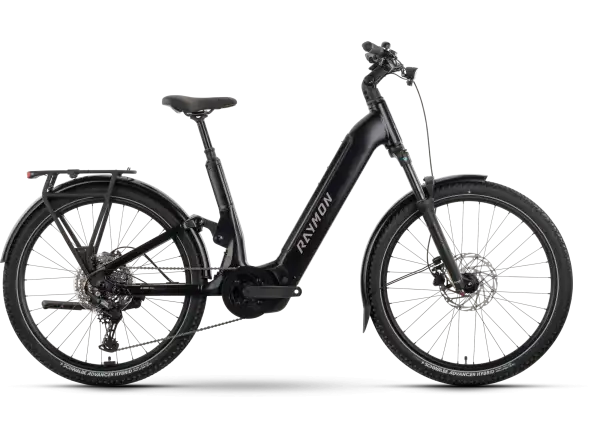

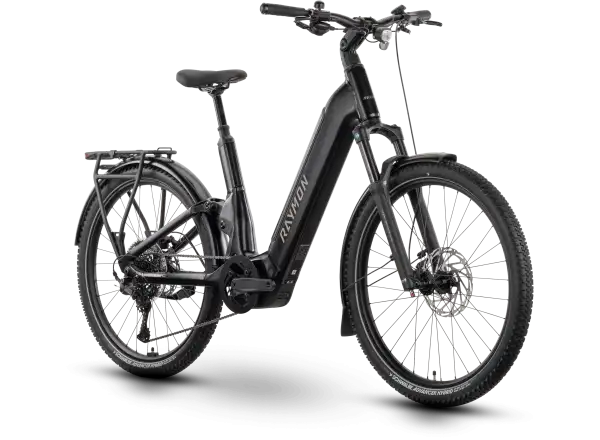

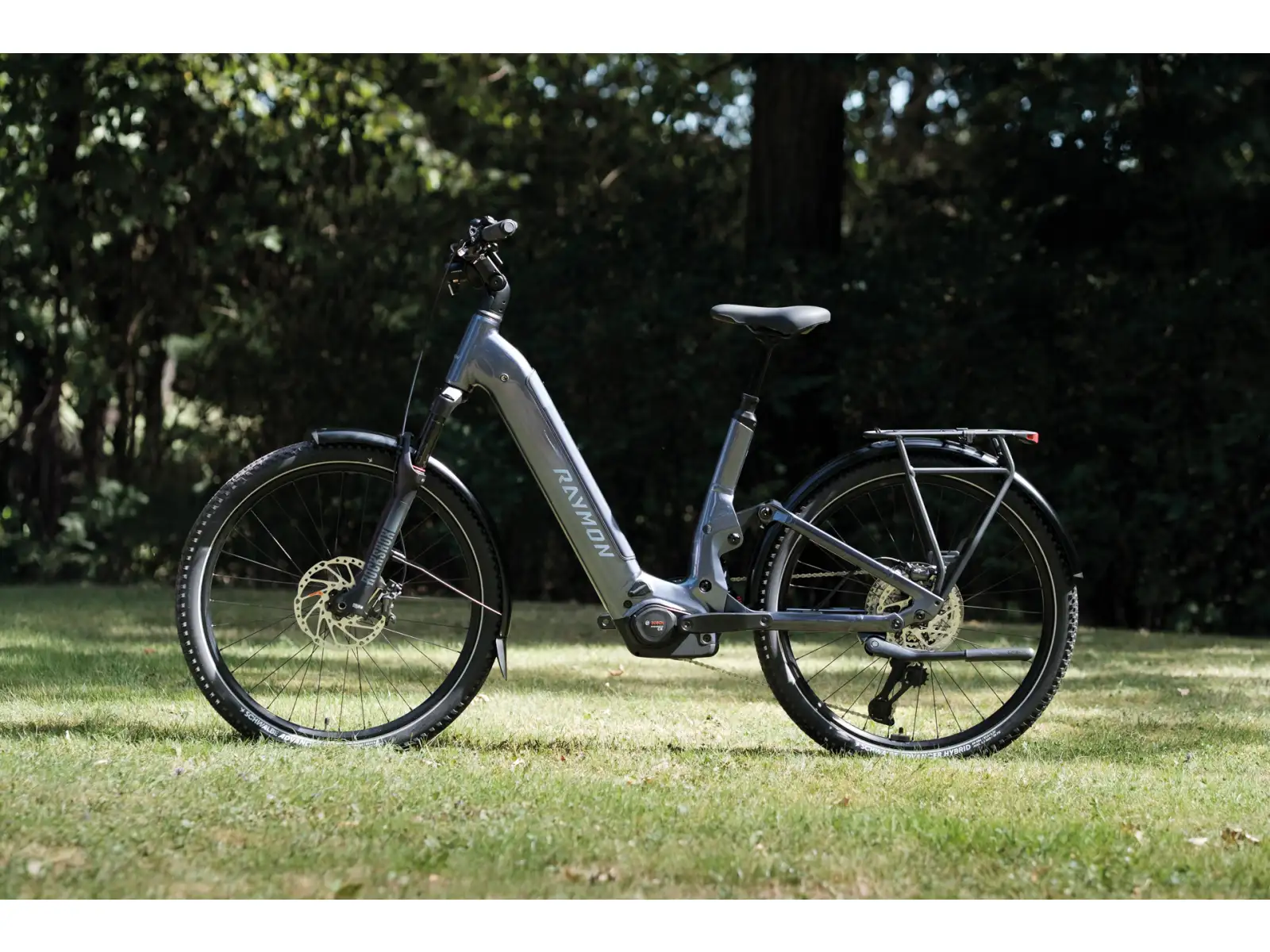

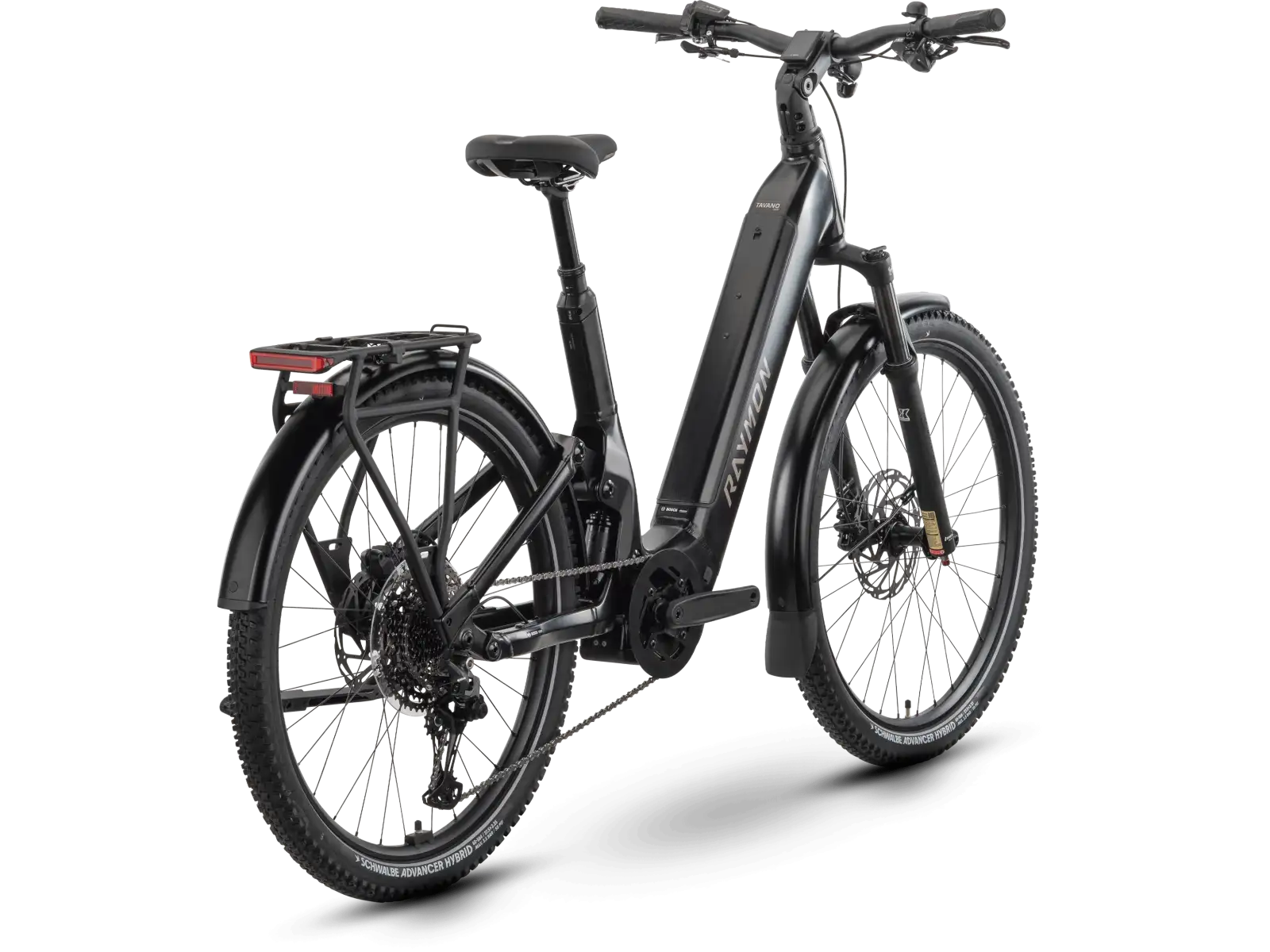

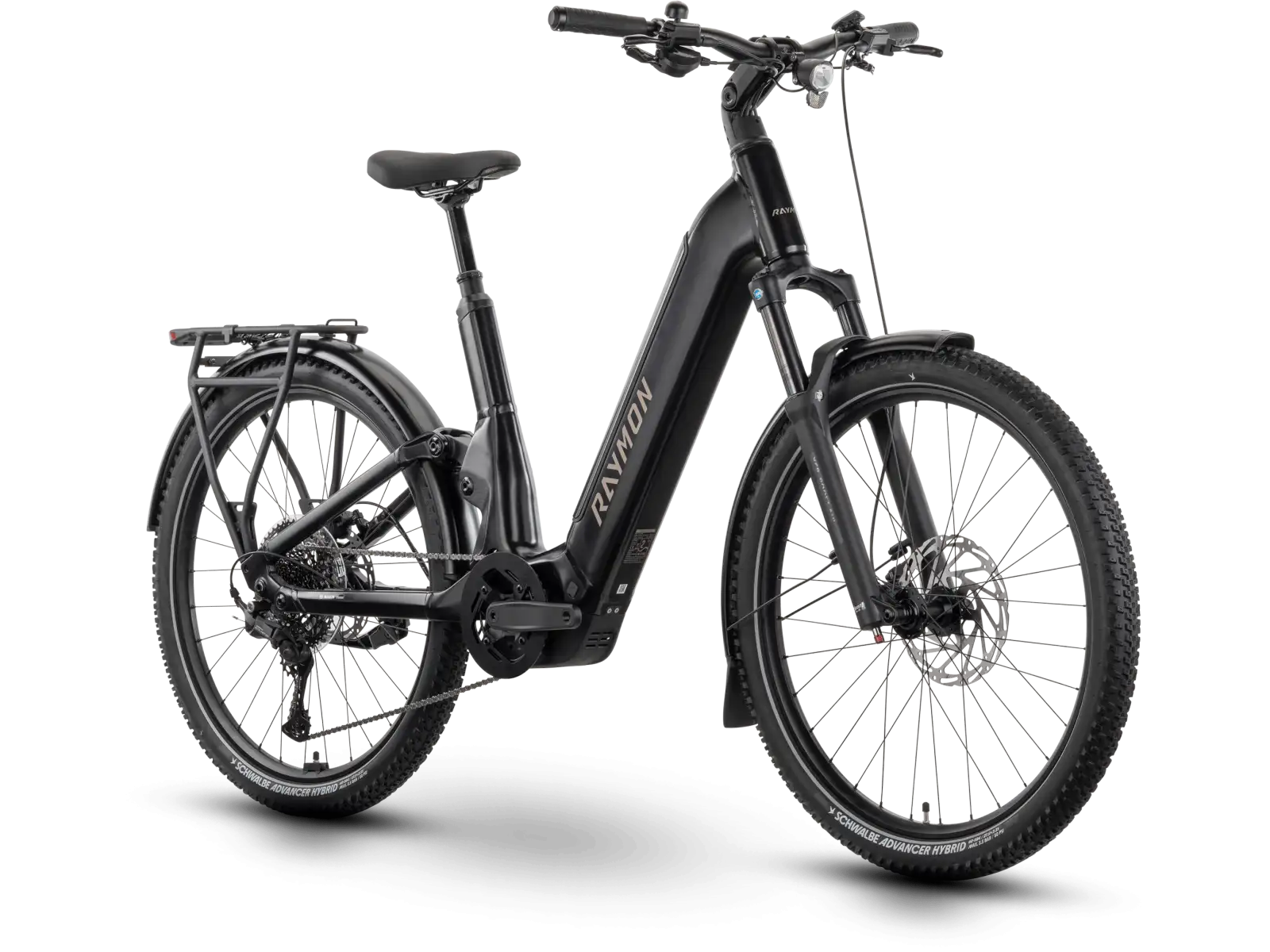

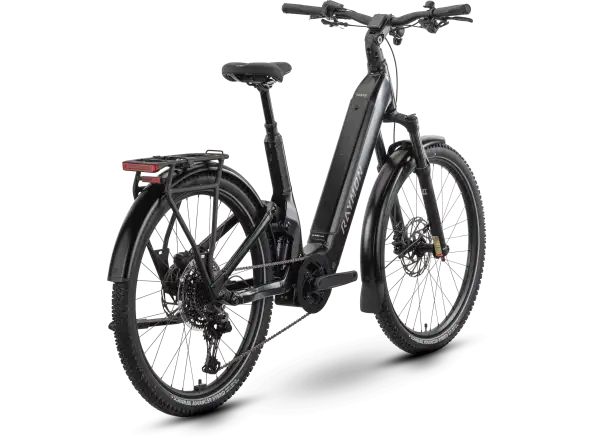

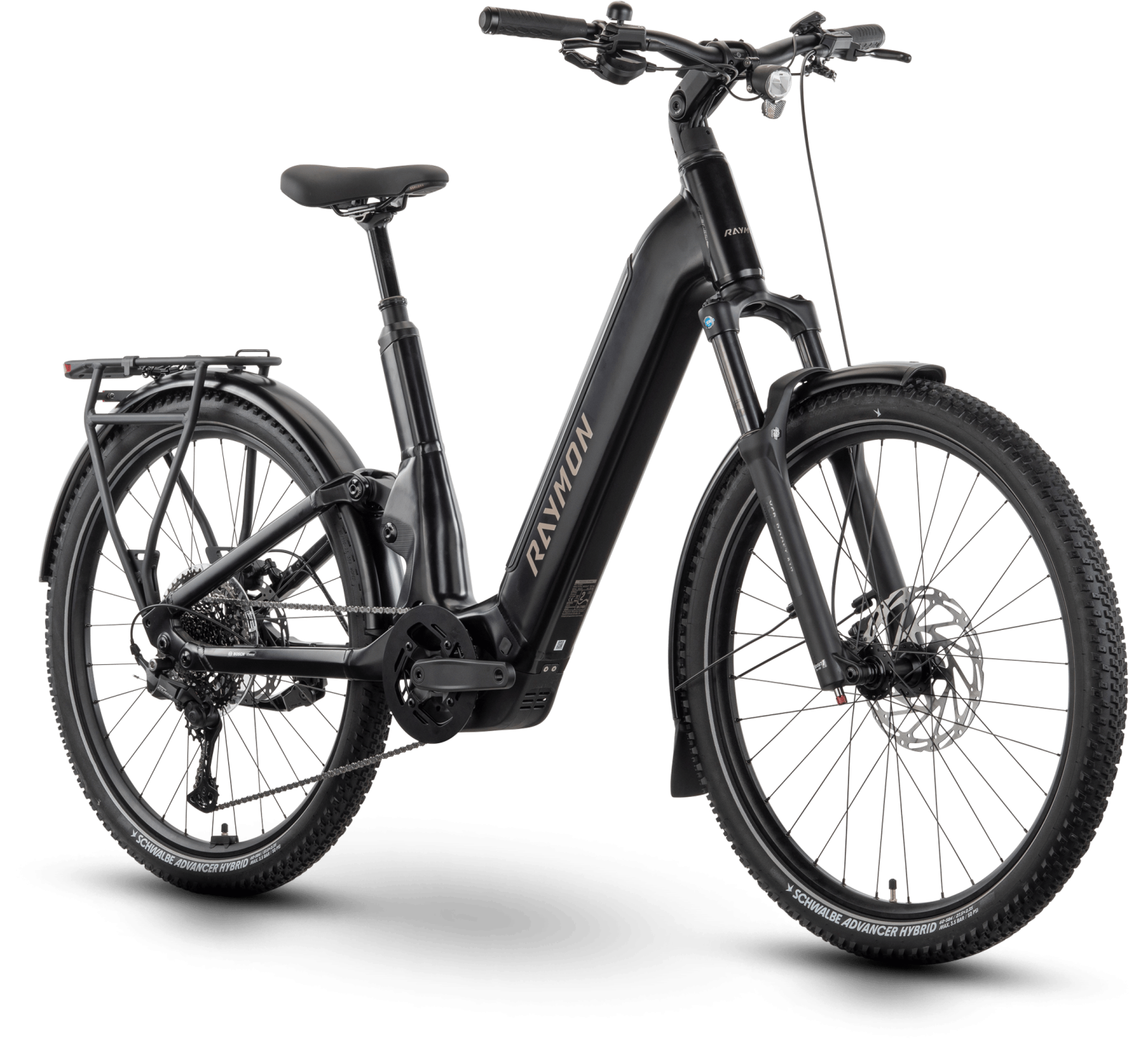

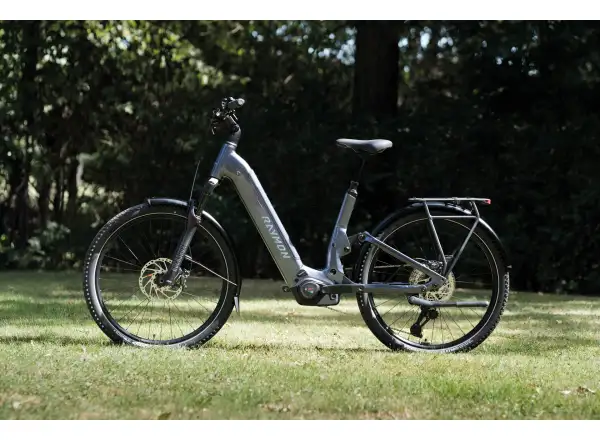

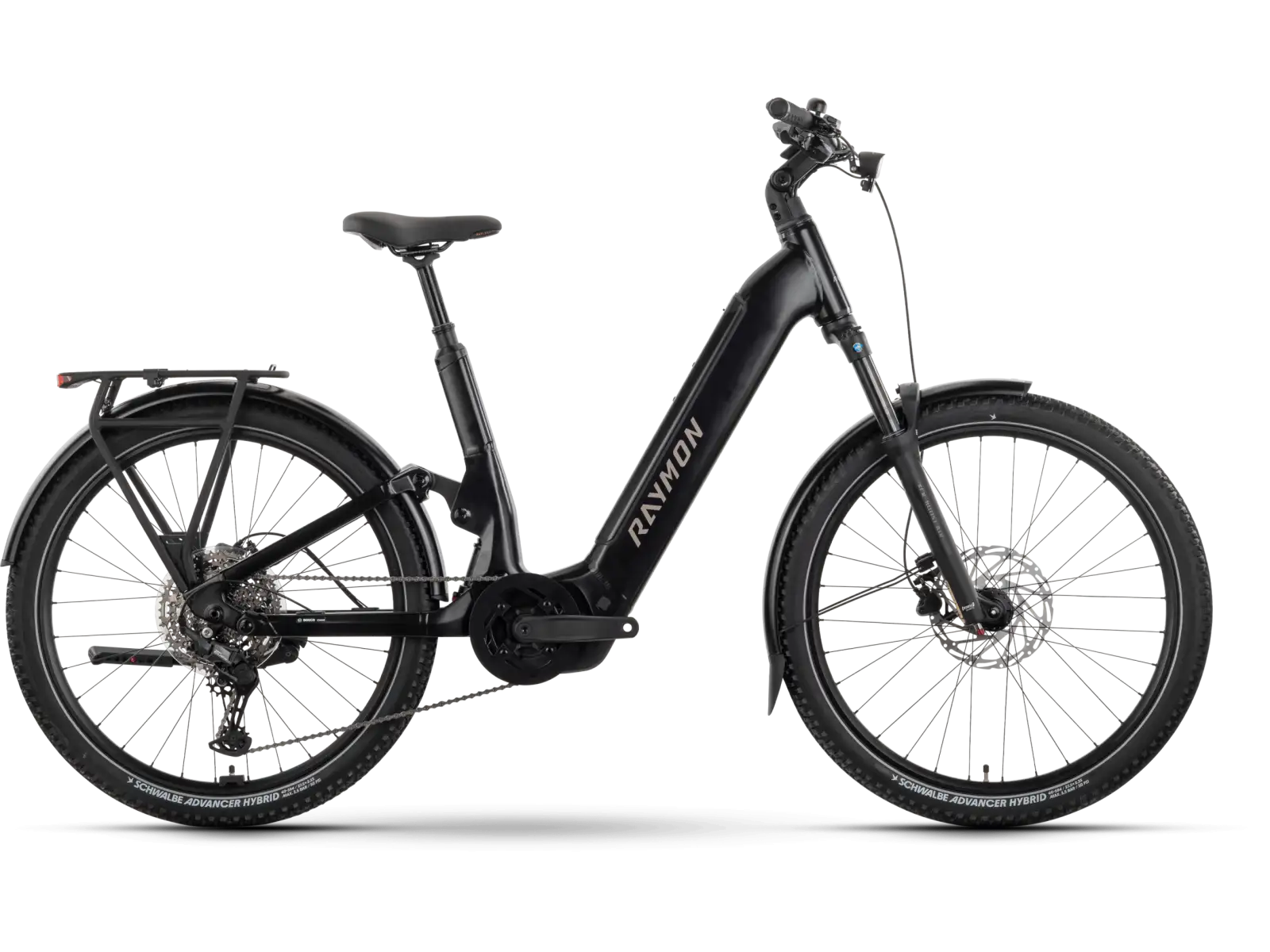

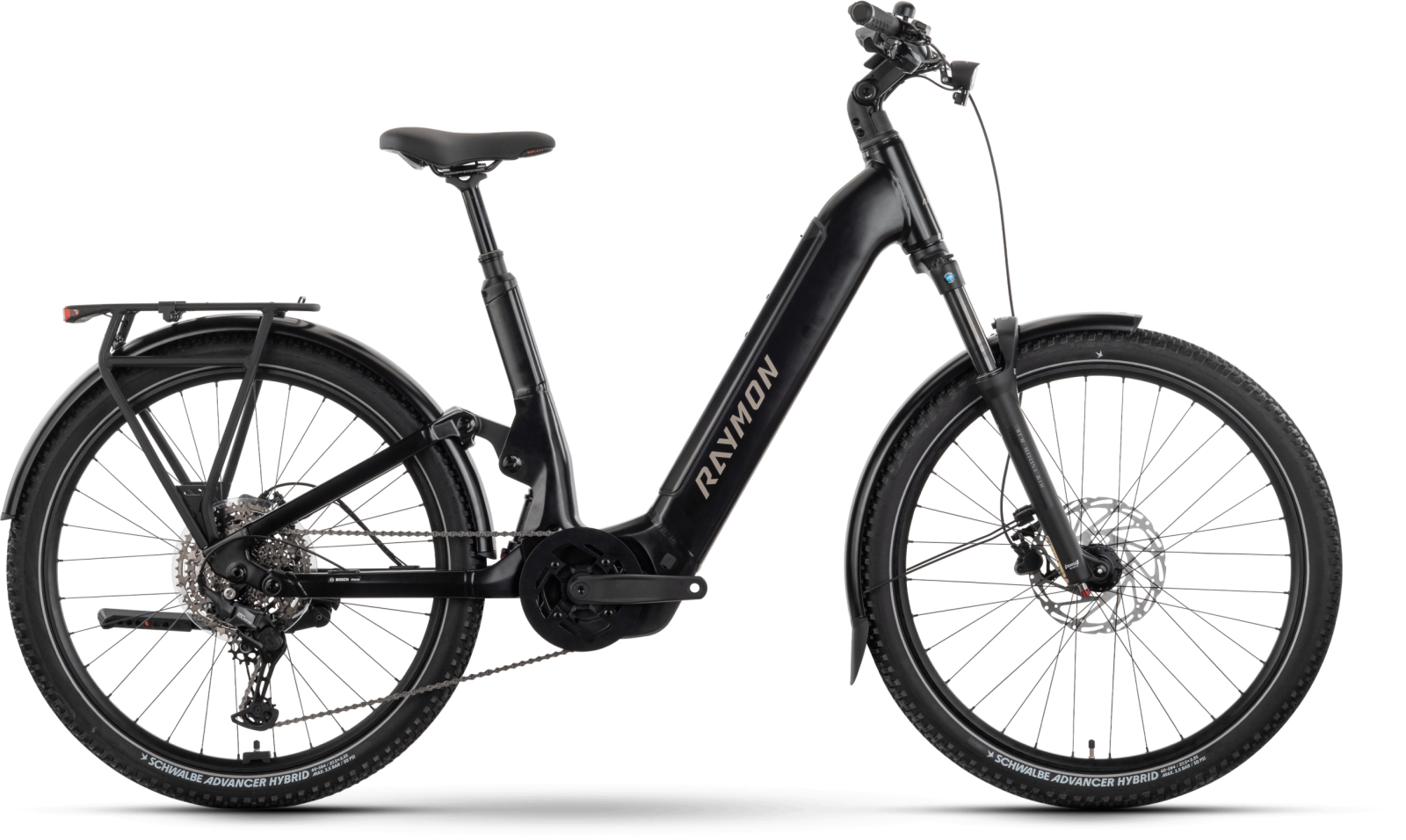

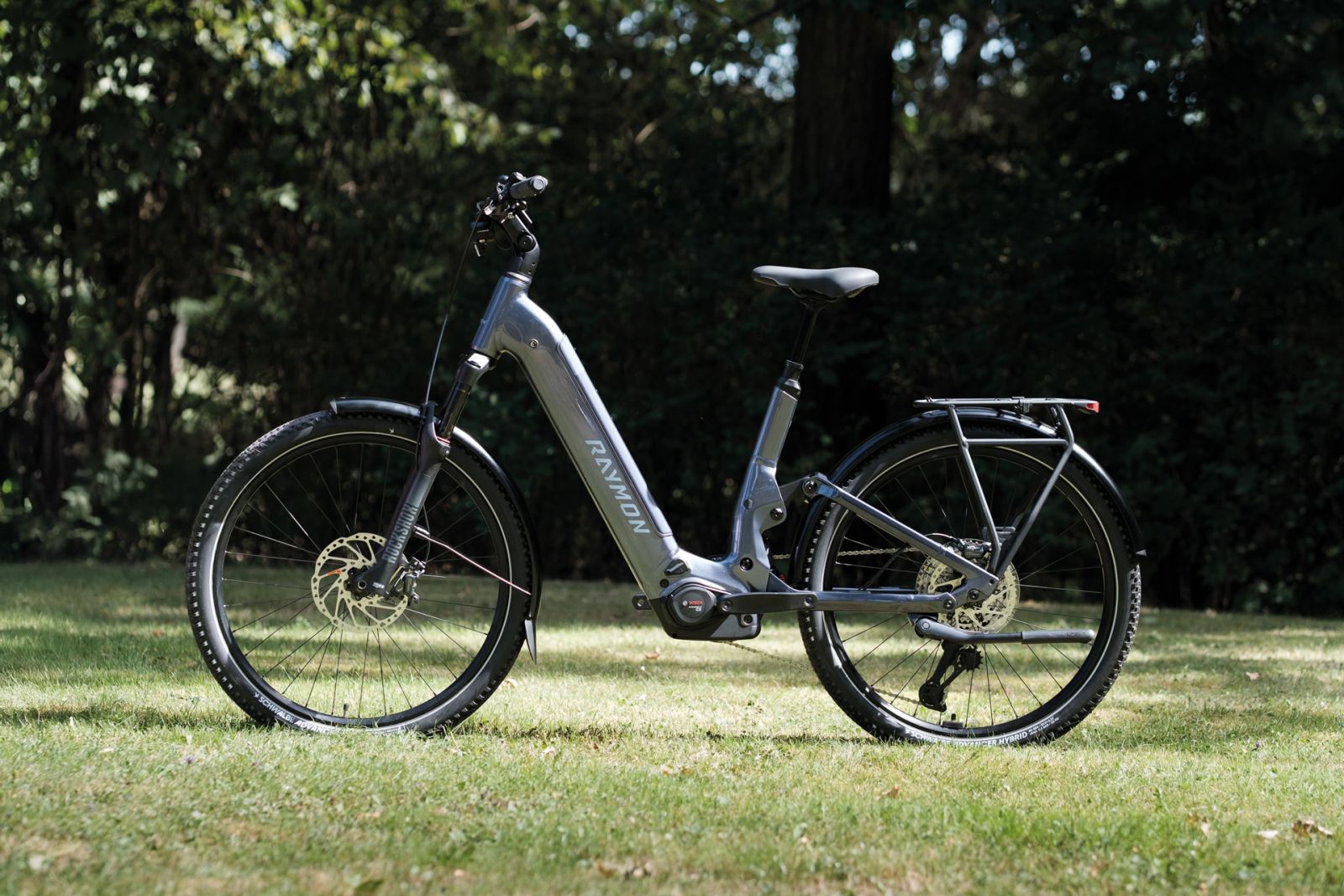

Raymon Tavano Comp 27.5 11s Cues e-bike black/stealth is a full-suspension e-trekking bike for the city, gravel, and dirt roads. It combines a Bosch mid-drive motor with an integrated battery and practical commuter-friendly equipment. It sits in the mid-performance class, where range, comfort, and functional component spec are key.

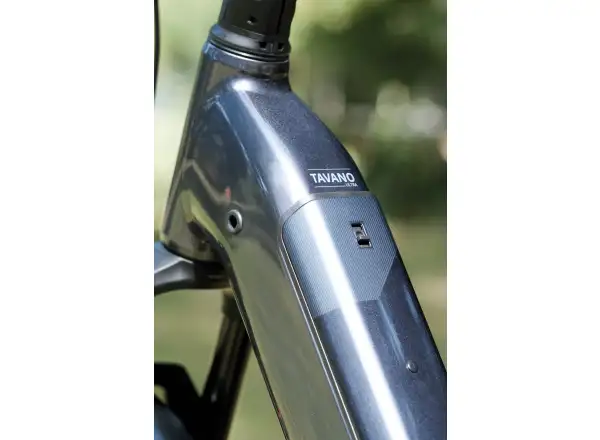

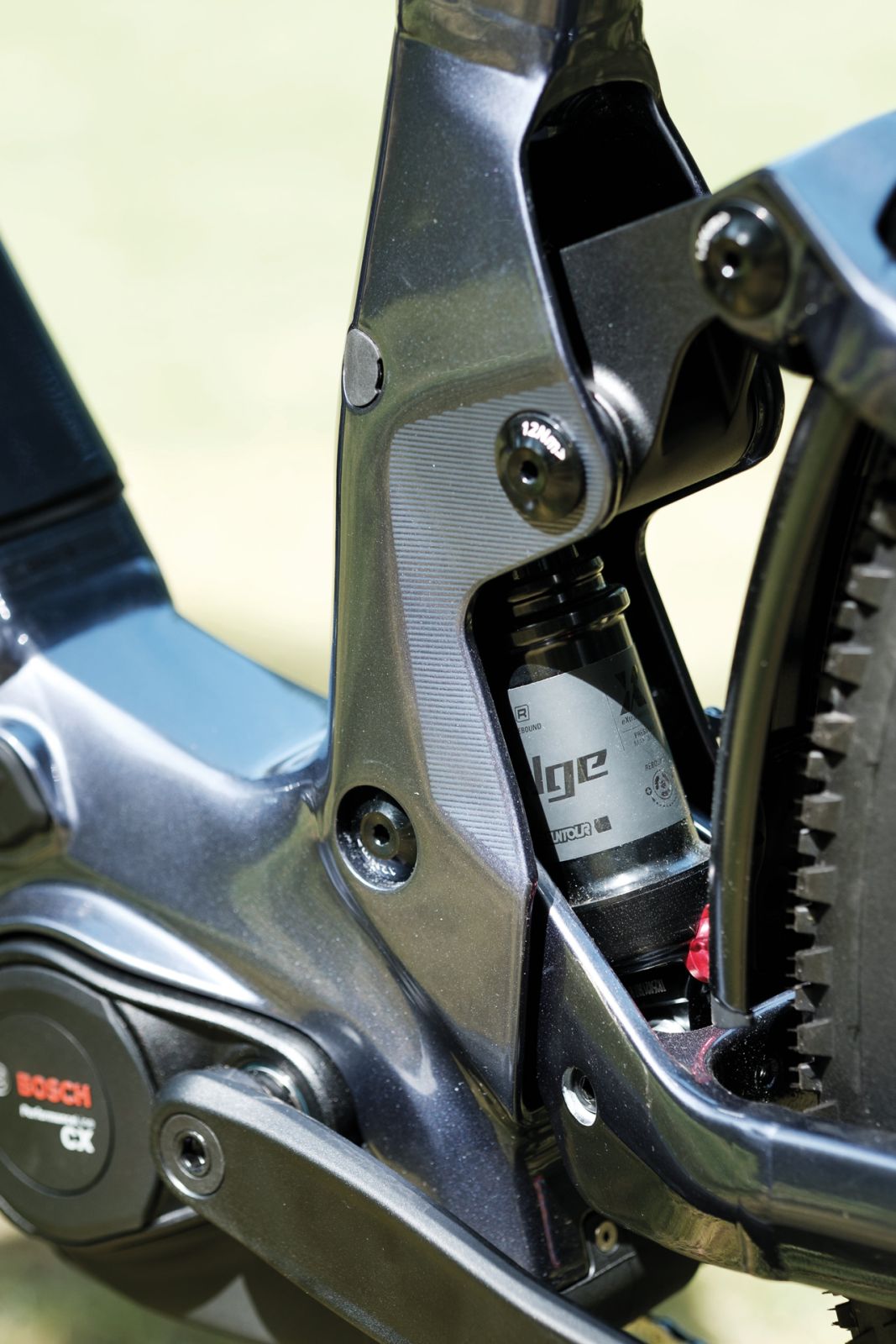

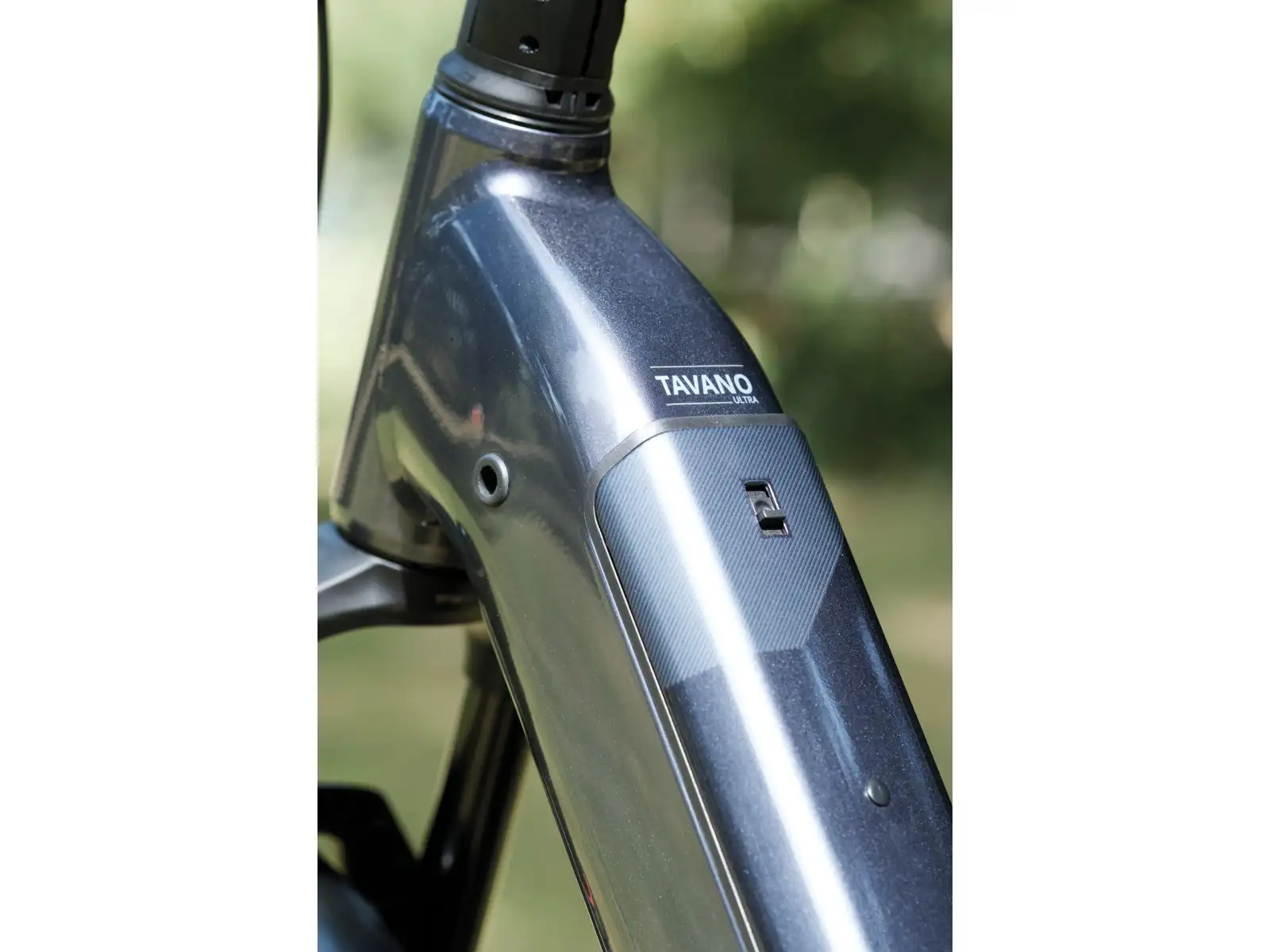

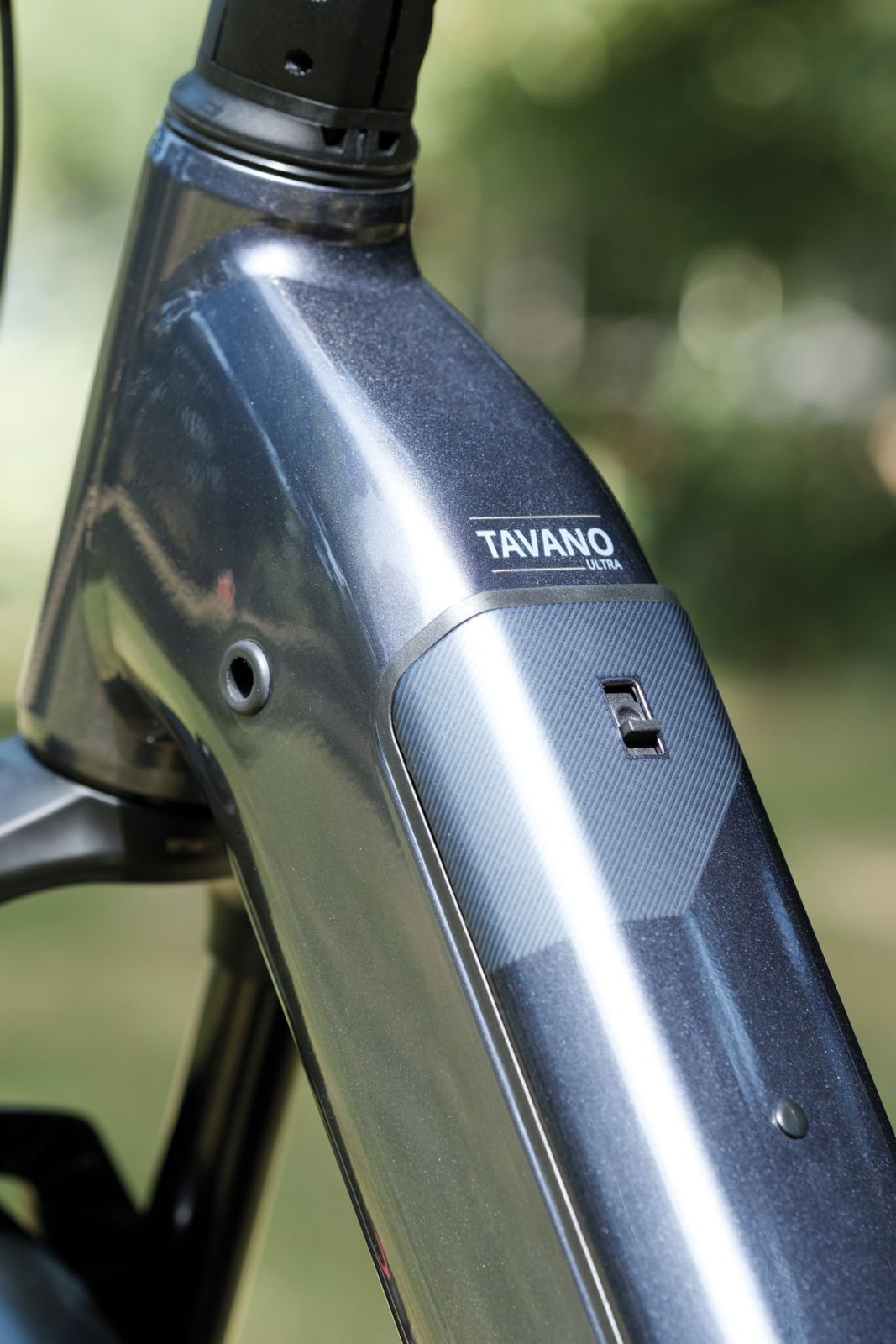

The frame is made from Alloy 6061 aluminum for 27.5" wheels and is designed for an integrated, removable Bosch PowerTube battery. The Wave concept makes mounting easier and works better with frequent stops in the city. The rear suspension delivers 120 mm of travel and the frame uses the Boost standard. Up front is an SR Suntour XCR34X Boost 2CR air fork with 120 mm travel and a tapered steerer.
Drivetrain: Shimano Cues SL-U6000 shifting works with 11 speeds and controls the Shimano Cues LG RD-U6000 rear derailleur. The Shimano CS-LG400 cassette has an 11–50-tooth range, and the Shimano CN-LG500 chain is from the LG series.
Brakes: Tektro HD-M3120 hydraulic disc brakes are two-piston. The Tektro TR52 rotors measure 203 mm up front and 180 mm at the rear.
Wheels and tires: Raymon VR24/DT210 wheelsets use 15×110 mm and 12×148 mm axles in the Boost system. Schwalbe Advancer Hybrid Reflex tires are sized 27.5×2.3" and marked 60-584.
Cockpit: Raymon Riser 31.8 mm handlebars have a 15° sweep and 30 mm rise. An adjustable Raymon stem is paired with a Selle Royal Explora Plus saddle and a Raymon 34.9 mm dropper seatpost.

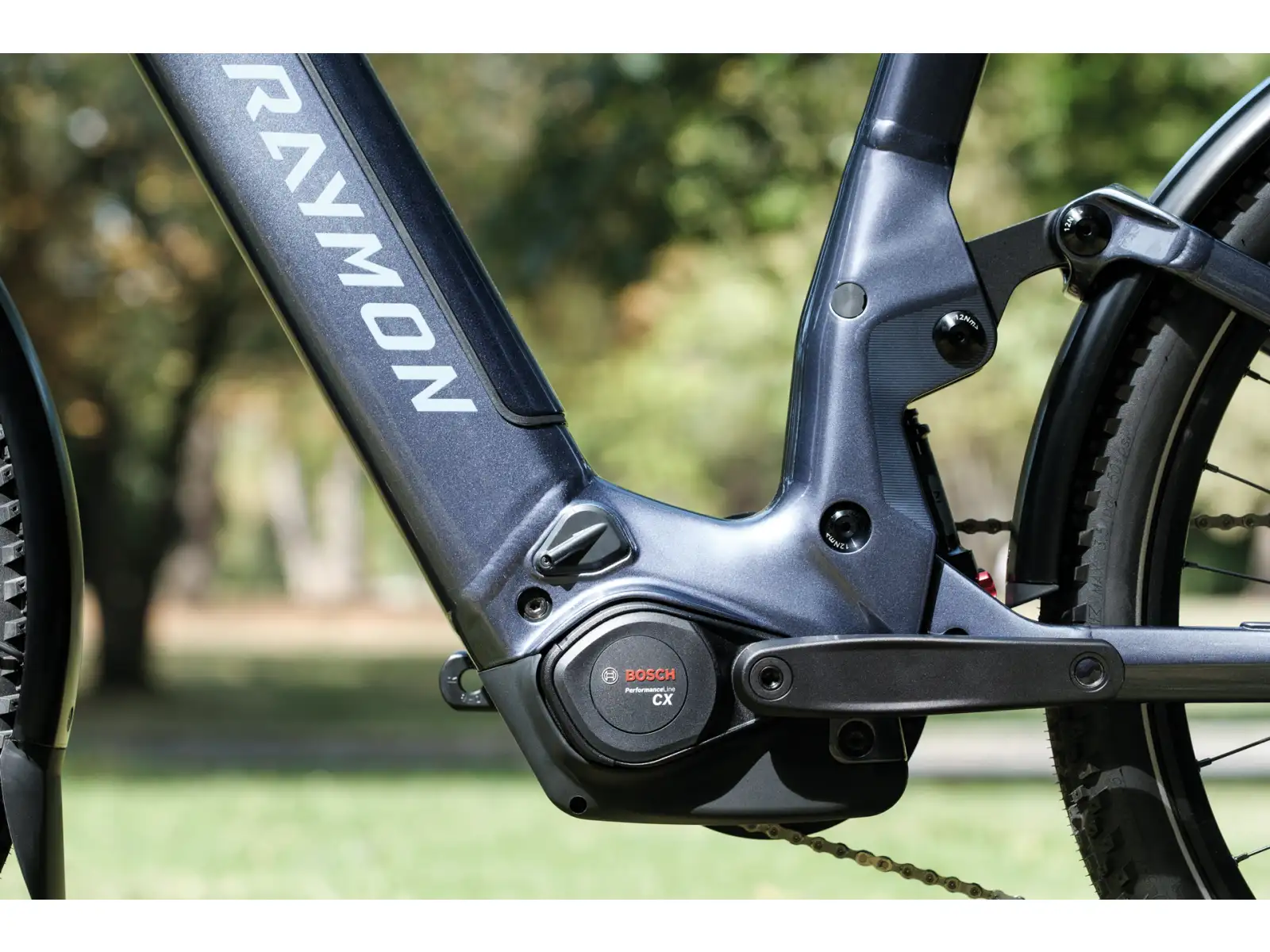

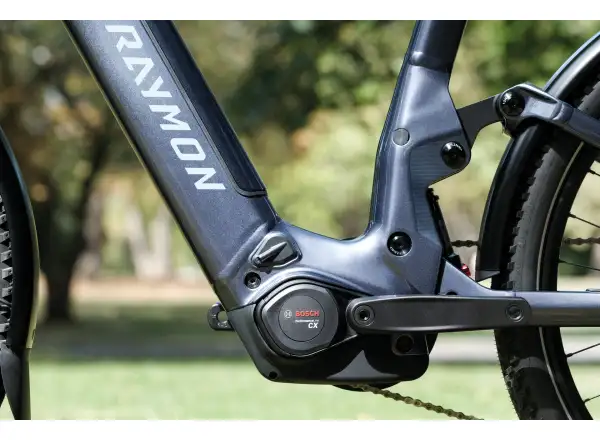

The combination of 120 mm travel front and rear smooths out rough asphalt, cobblestones, and broken bike paths without needing to drop tire pressure to the bare minimum. The Boost standard increases wheelset lateral stiffness and helps stability in gravel corners. The Bosch Performance Line PX motor with 90 Nm of torque supports smooth starts and climbing even with a load. The 11–50-tooth gearing maintains a sensible cadence at low speeds off-road as well as during road transfers.
This model is aimed at riders who want one e-bike for everyday commuting and weekend gravel rides. It’s a good fit for technically confident cyclists who care about range, traction, and stable handling over rough surfaces. Compared to hardtail e-trekking bikes, it adds rear suspension and a dropper seatpost for more confident weight and balance management.
EAN: 788364354587
E-bike range calculator
The stated range is approximate. The actual total range is influenced by several factors, such as the selected assistance mode, the technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique.
Manufacturer: R Raymon Bicycles GmbH, Rudolf-Diesel-Str. 35, 97424 Schweinfurt - Germany, +49 9721 5393596-30, service@raymon-bicycles.com, www.raymon-bicycles.com/en/
27.5", Alloy 6061, removable battery, boost, 120 mm suspension
SR Suntour XCR34X Boost 2CR, air, 120 mm, tapered

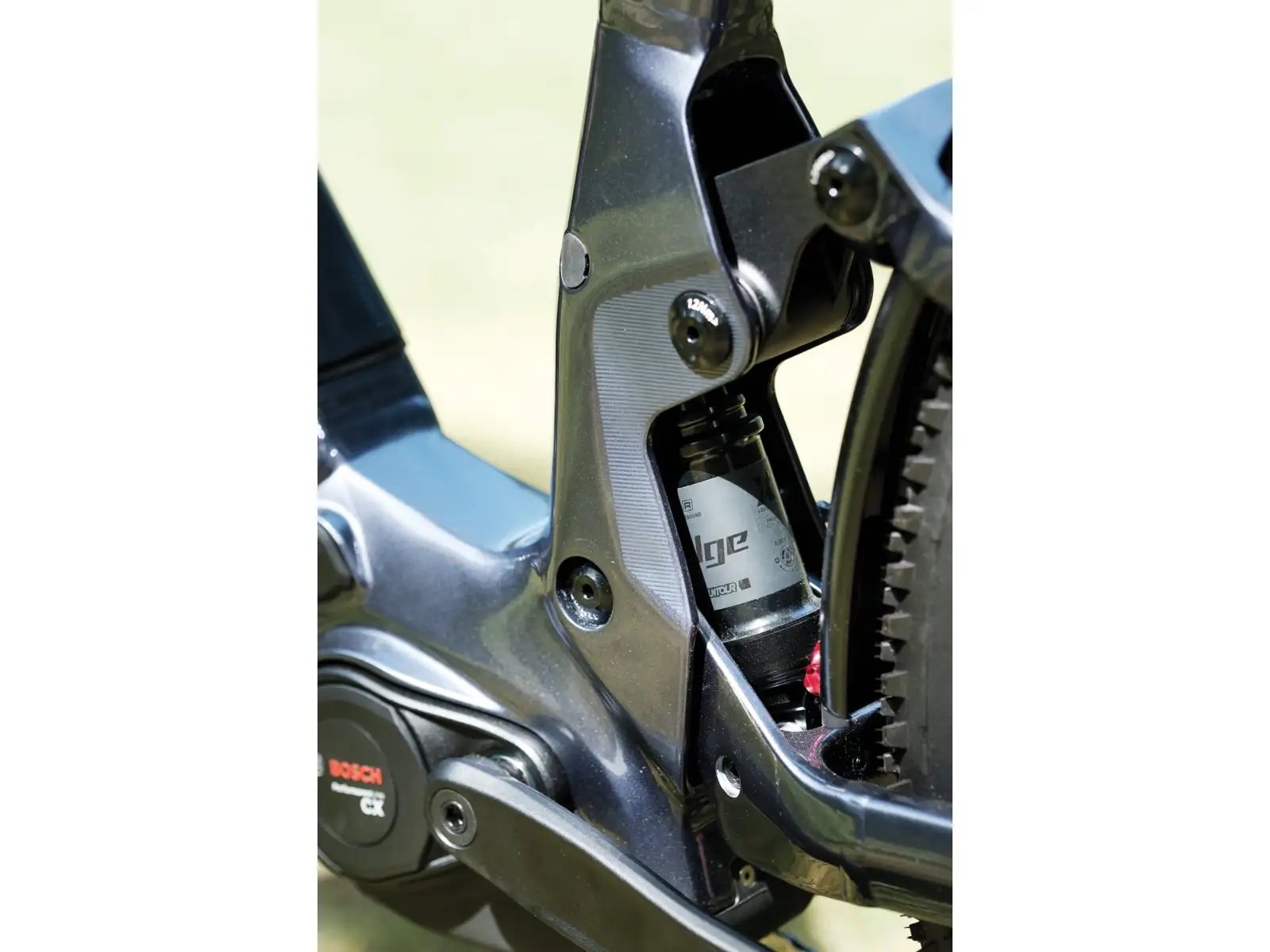

SR Suntour EdgeX R, air, 190x45 mm

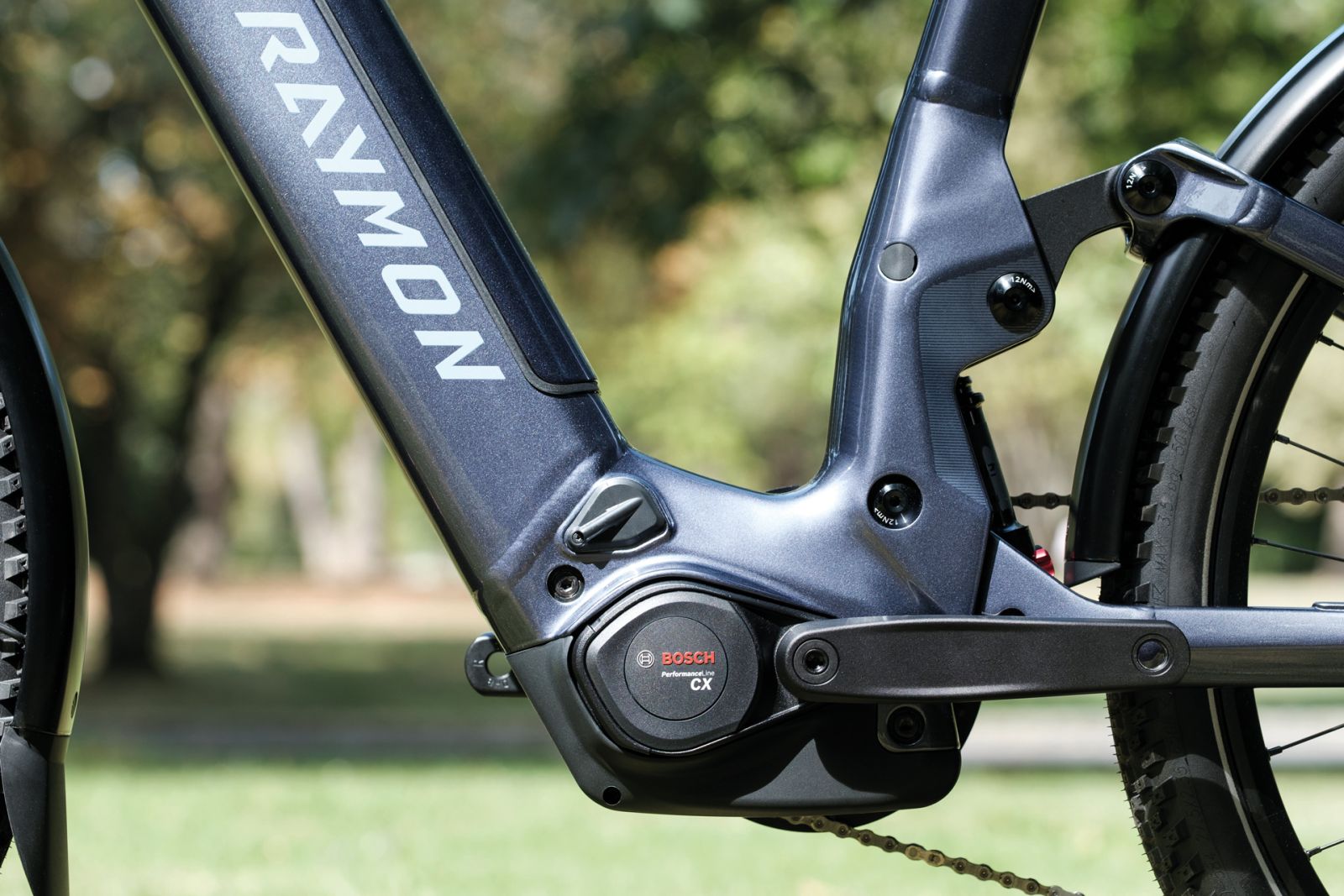

Bosch Performance Line PX, 250/700 W, 90 Nm
Bosch PowerTube, 800 Wh, 36 V, Intube removable
Bosch Charger, 4 A

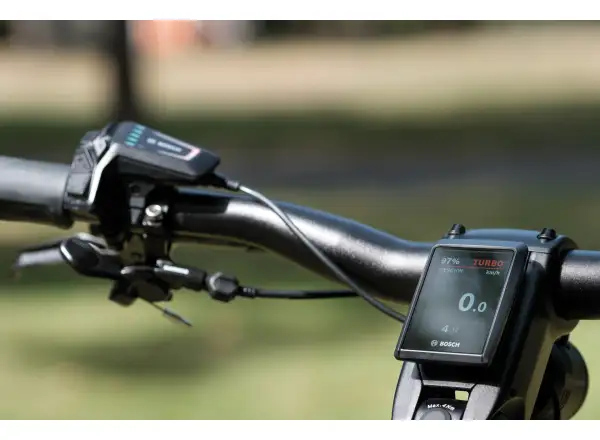

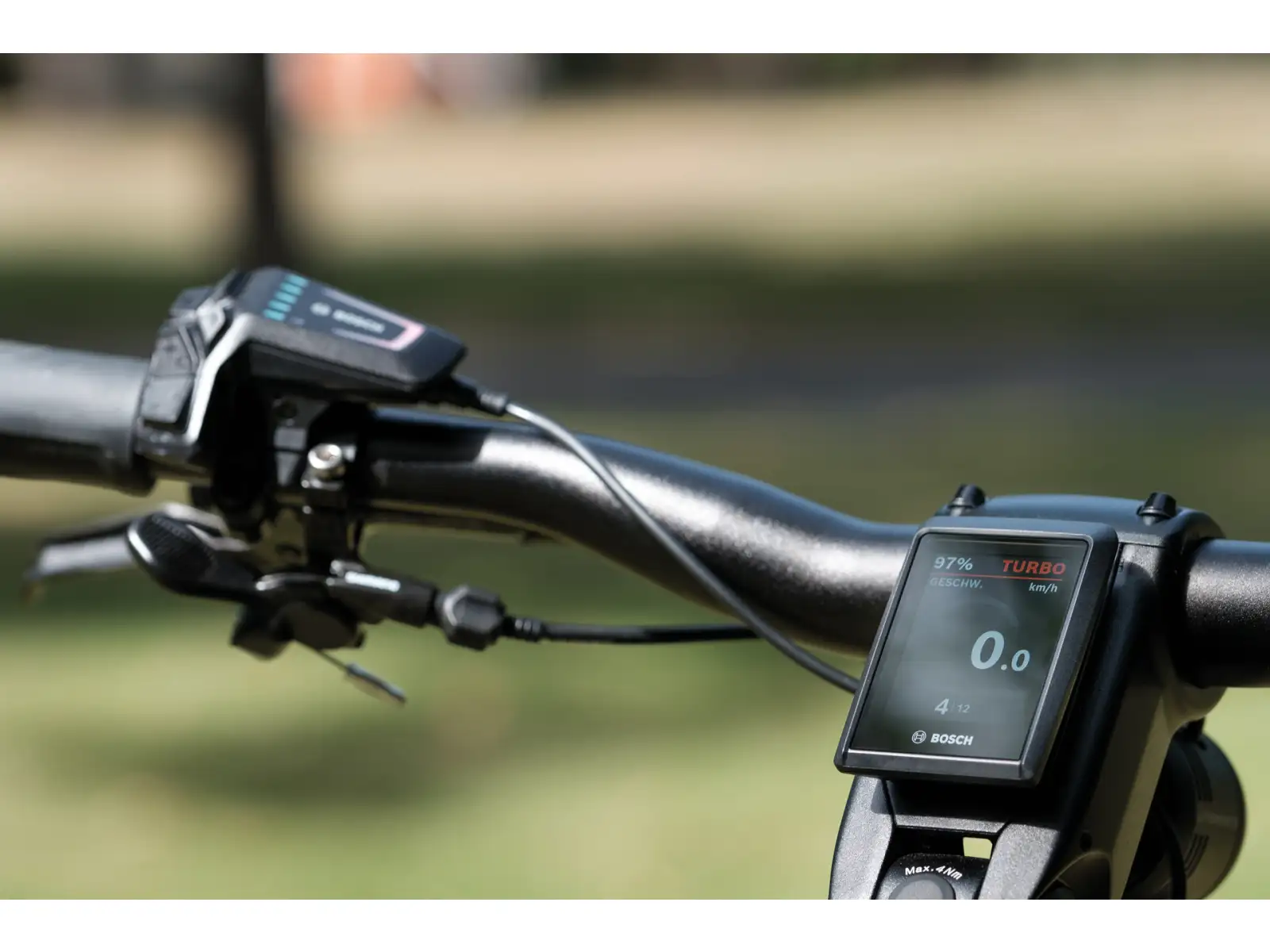

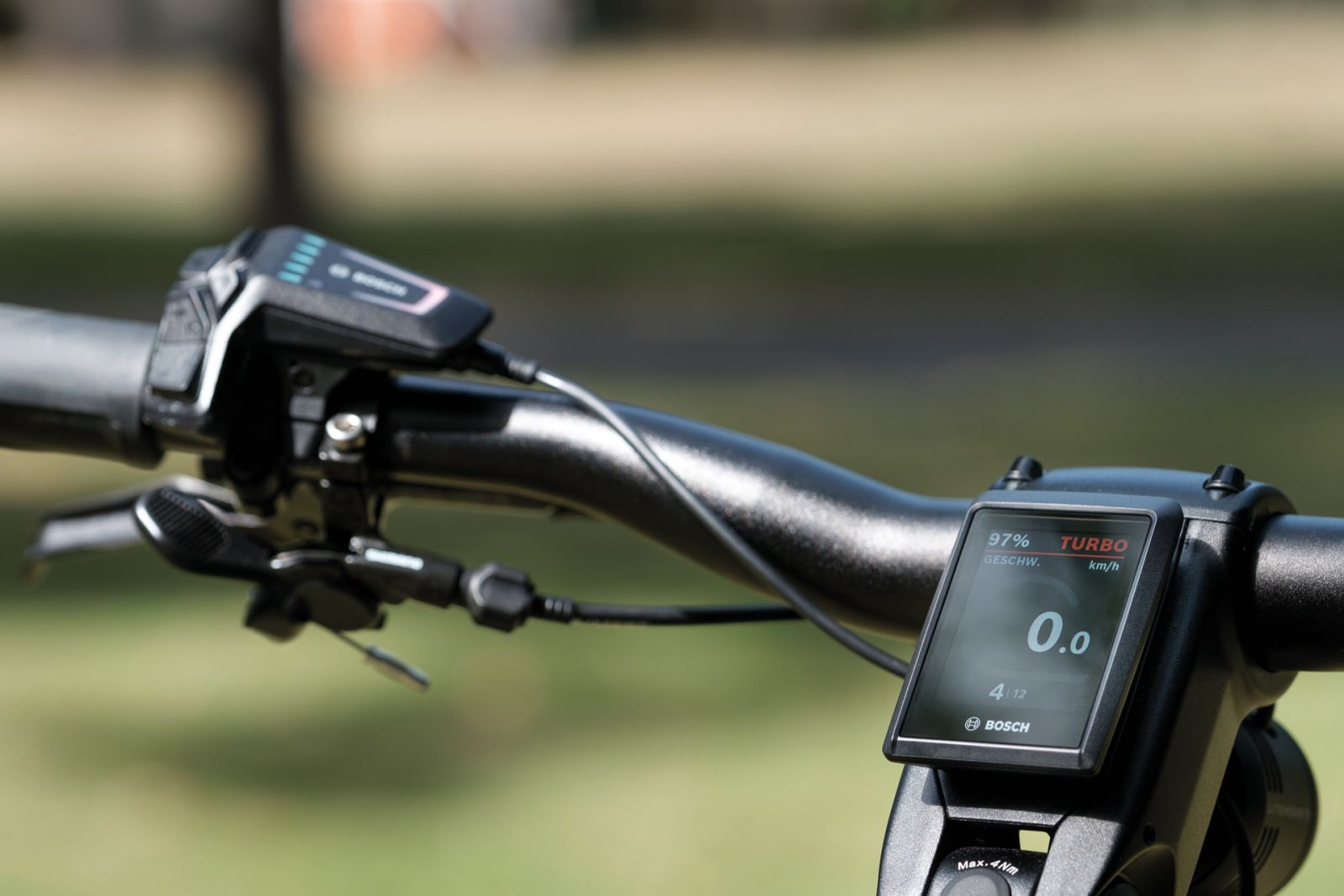

Bosch Kiox 300
Bosch Flow App, Free Shift System, smart energy management
Raymon VR24/DT210, 15x110/12x148 mm
Schwalbe Advancer Hybrid, Reflex, 60-584, 27.5x2.3"
Shimano Cues, SL-U6000, Rapidfire Plus
Shimano Cues LG, RD-U6000, 11-S
Shimano CS-LG400, 11-50T
Shimano CN-LG500
Tektro HD-M3120, 2-piston, hydraulic disc brake
Front: Tektro TR52, 203 mm, 6-bolt; Rear: Tektro TR52, 180 mm, 6-bolt
Raymon Riser 31.8 mm, Sweep: 15°, Rise: 30 mm
Raymon, 31.8 mm, Ahead, adjustable
Raymon Ergo, lock on
Selle Royal Explora Plus
Raymon, 34.9 mm, Dropper Post
Raymon MIK rack 25 kg, Litemove RLX-100 front light 100 lx, Ursus INTEGRALE ANS IC44 adjustable kickstand
31.1
Black/stealth
M (17 - 18)
Electric Bicycles, Commuting and Casual
Mens / UNI
Aluminum Alloy
Bosch PX Performance
800 Wh
Mid-Mount
27,5"
2027
Black
The bicycle manufacturer reserves the right to change the bicycle specifications without notice. In exceptional cases, the delivered product may differ from the stated specifications and images to improve the availability or functionality of the bicycle.
