A gravel bike for both asphalt and gravel roads, an aluminum frame and a carbon fork, Shimano GRX 2x12 shifting, Schwalbe 45-622 tires, 10.4 kg.
Detailed Description
Focus is a renowned German bicycle brand with a long tradition in developing high-performance road, gravel, and mountain bikes. It builds on precise engineering, innovative technologies, and emphasis…
More about the brand FocusA gravel bike for both asphalt and gravel roads, an aluminum frame and a carbon fork, Shimano GRX 2x12 shifting, Schwalbe 45-622 tires, 10.4 kg.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
Some parts of this page are translated automatically, so please excuse any imperfections.

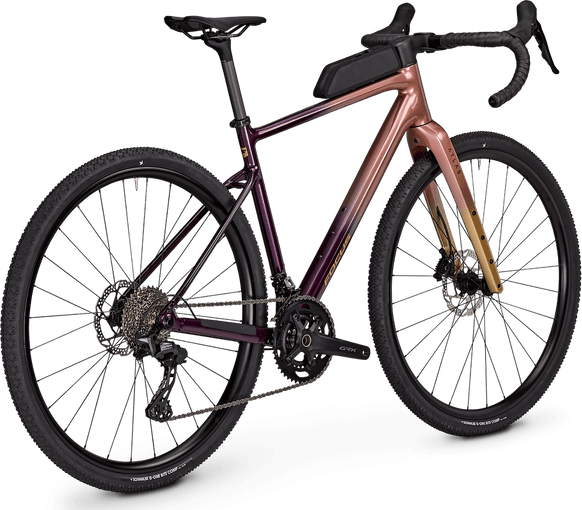

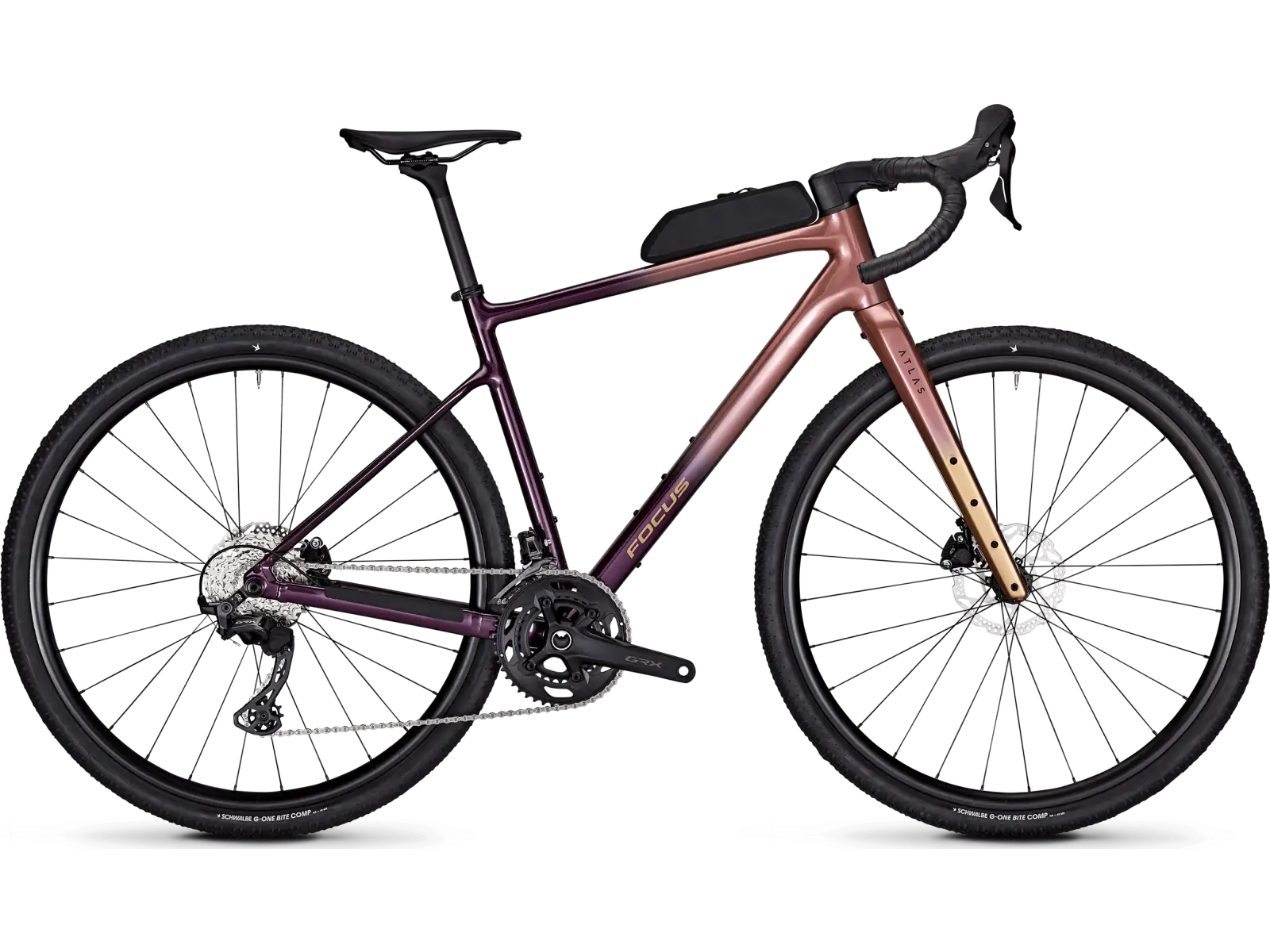

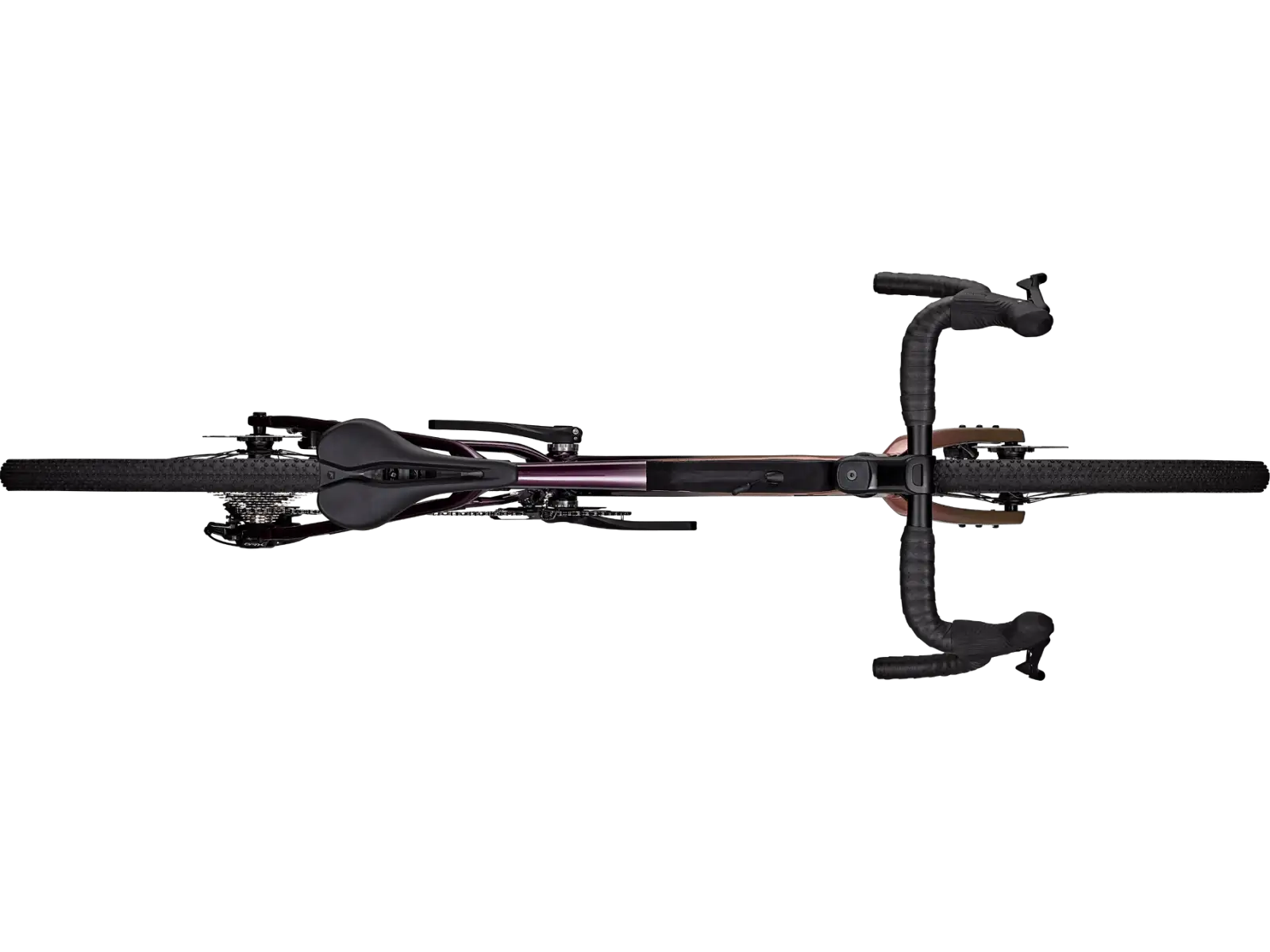

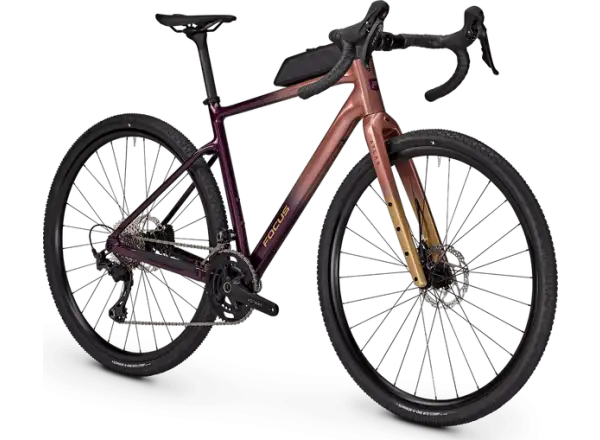

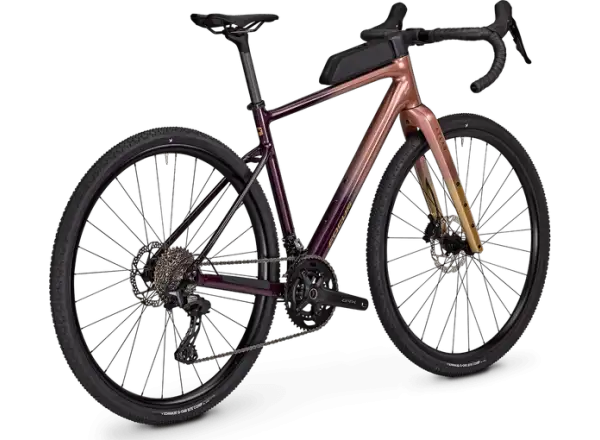

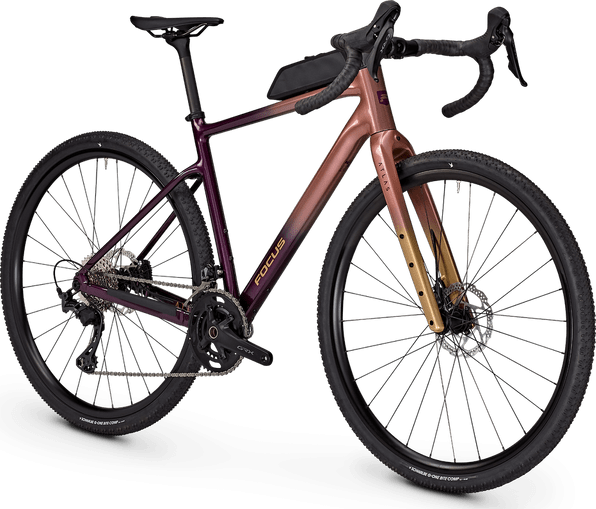

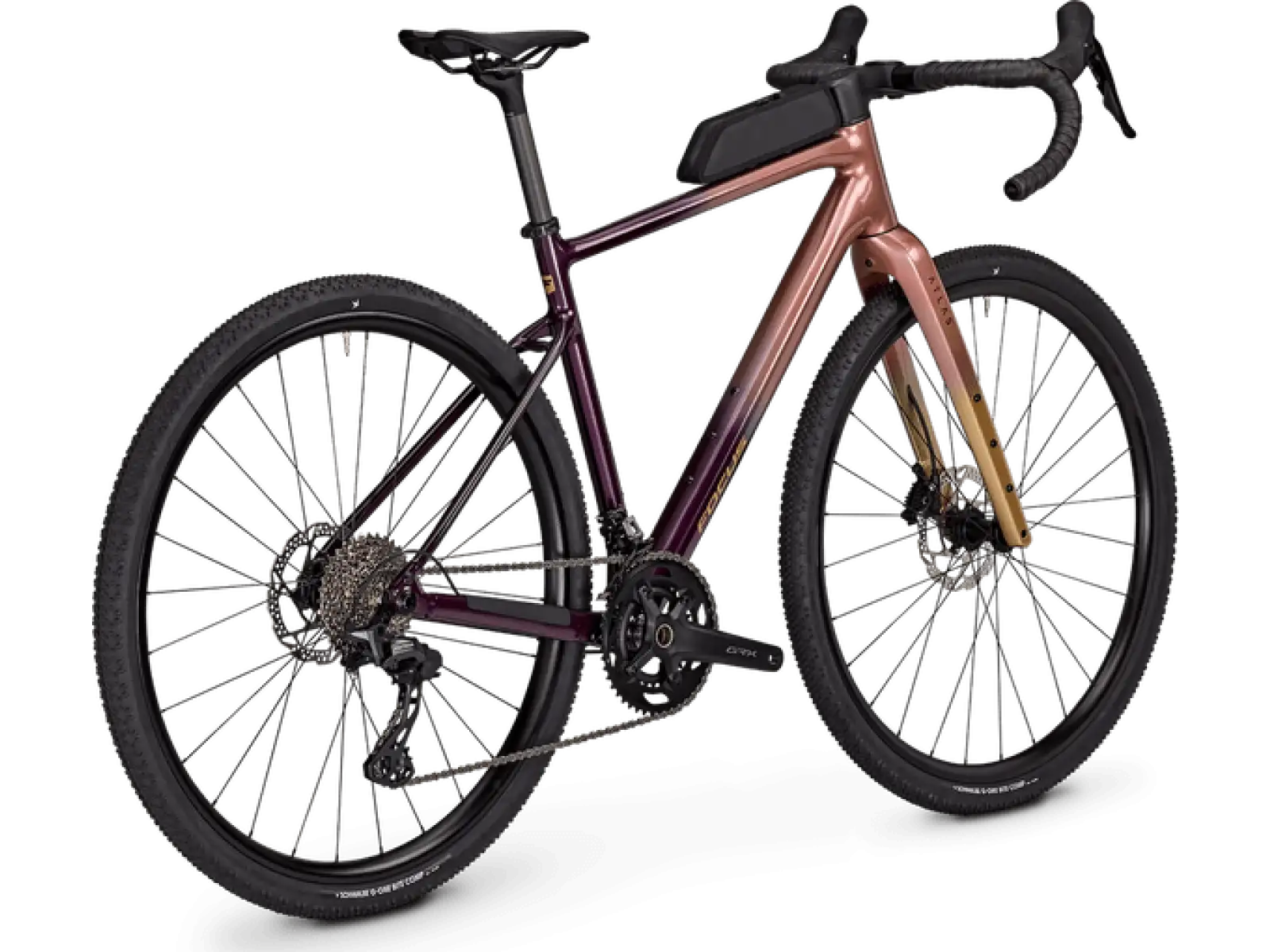

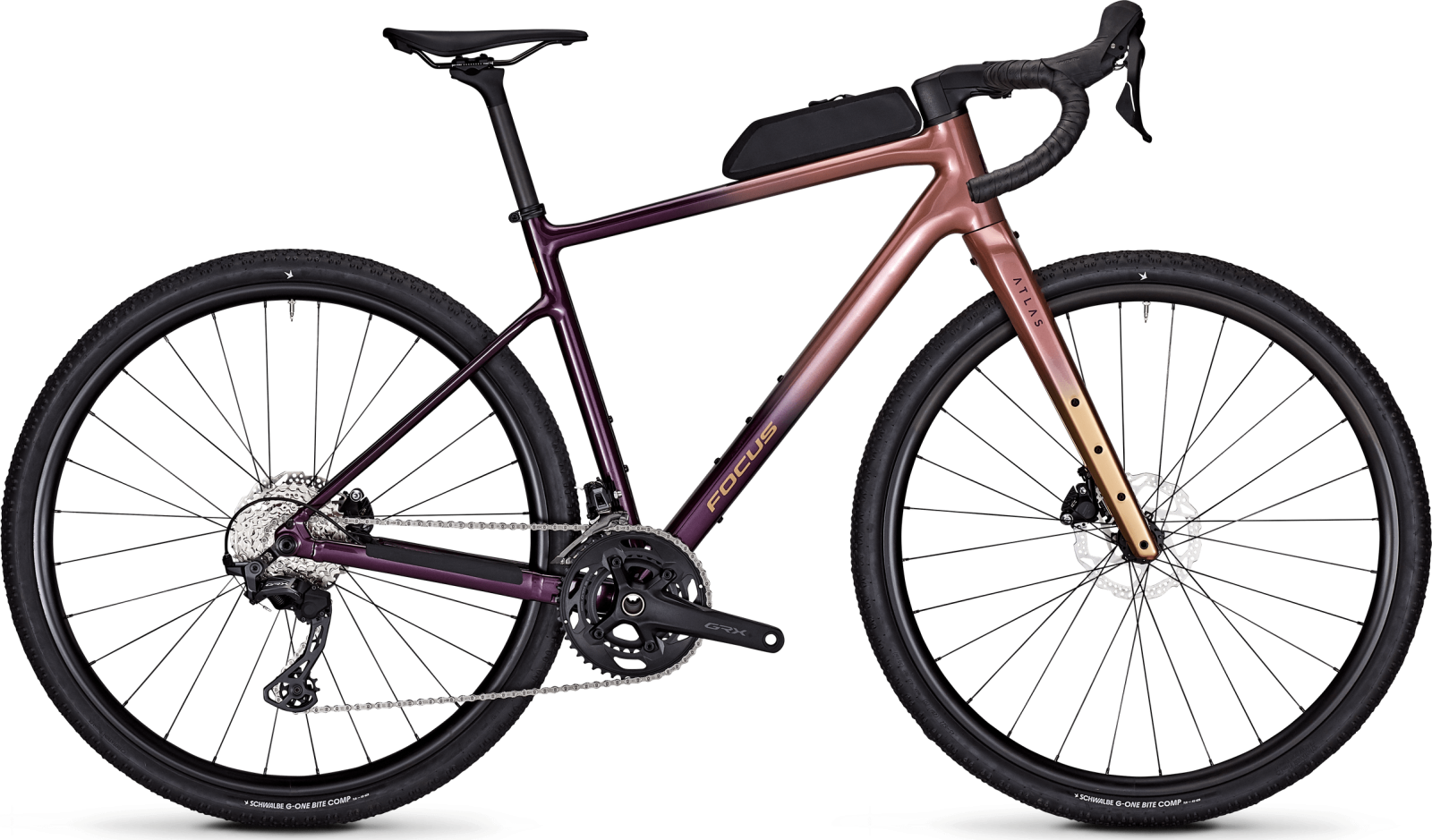

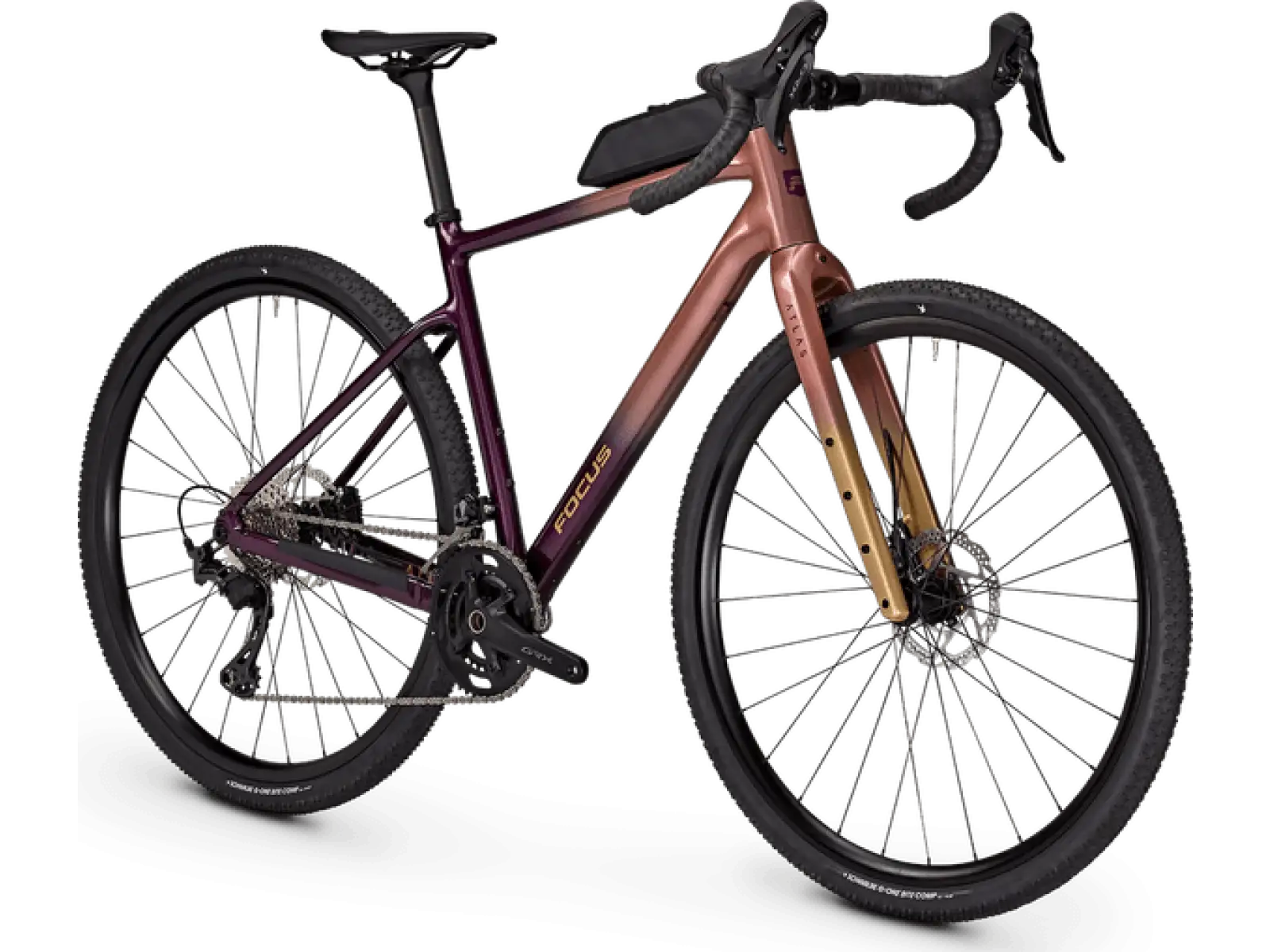

Focus Atlas 6.9 gravel bike Mauve/Dreamviolet is a gravel bike with an aluminum frame, built for fast riding on gravel as well as asphalt connecting sections. It sits in the mid-performance category and targets riders who want modern components without a carbon frame. The concept is based on thru-axles, disc brakes, and a double chainring for a wide gear range.
The frame is made from 6061 aluminum alloy and uses a 142 × 12 mm thru-axle and Flat Mount mounting. The front fork is carbon, with a 100 × 12 mm thru-axle and preparation for a 160 mm rotor. The geometry is stable for longer off-road rides, with a 425 mm chainstay length across sizes. Sizes XS to XL are complemented by specific stack and reach values, for example XS 556/365 mm and XL 638/410 mm.
Drivetrain: Shifting is handled by Shimano GRX in a 2 × 12 configuration, with GRX 610 and GRX 820 components. The Shimano CS-HG710 cassette has an 11–36 range, and the bottom bracket is Shimano BSA 24 mm.
Brakes: Shimano GRX 610 hydraulic disc brakes work with Shimano RT54 rotors. Up front it’s 180 mm on sizes L–XL, otherwise 160 mm; in the rear it’s 160 mm.
Wheels and tires: The wheels are built on Rodi Blackjack rims and Alexrims BRD-503 and BRD-504 hubs. Schwalbe G-One Bite 45-622 tires are tubeless ready.
Cockpit: Focus Gravel Bar handlebars are aluminum, complemented by the integrated FOCUS C.I.S. 2.0 stem with mounts for Garmin and Wahoo. The seatpost is a 27.2 mm carbon post with 15 mm setback, and the saddle is Focus.
The 6061 aluminum frame delivers direct power transfer when riding out of the saddle and when accelerating on the flats. The carbon fork helps reduce vibration transmitted to your hands during long gravel rides. The combination of 45-622 tires and more stable geometry boosts confidence on descents and in tight corners on loose surfaces. The 46/30 gearing and 11–36 cassette maintain sensible spacing for asphalt as well as longer off-road climbs.
Focus Atlas 6.9 is for experienced riders looking for a gravel bike for all-day rides, gravel routes, and fast connecting stretches on the road. You’ll appreciate it if you want a double chainring and precise Shimano GRX shifting for varied terrain. In the aluminum gravel segment, it stands out with its combination of a carbon fork, thru-axles, and a system weight limit of 135 kg.
EAN: 4060908145292
Manufacturer: FOCUS & Kalkhoff Holding GmbH, Europa-Allee 26, D - 49685 Emstek, +49 (0)4473 9317-0, info@kalkhoff-bikes.com, www.focus-bikes.com
6061 Aluminium, disc, 142x12 mm thru axle, flat mount 160 mm
ACROS IS52 /IS52 (ICR), FOCUS C.I.S. Integrated
Carbon technologie, disc, 100x12 mm thru axle, flat mount 160 mm
Mauve/Dreamviolet
Schwalbe G-One Bite, tubeless ready, 45-622
Rodi Blackjack SL 25 (front), Rodi Blackjack (rear), alloy, rim height: 23 mm, width: 25-622
Alexrims BRD-503 (front), Alexrims BRD-504 (rear)
Shimano GRX 610
Shimano GRX 820, 12-speed
Shimano GRX 820
Shimano GRX610, 46/30 T
Shimano CS-HG710, 11-36T
Shimano, BSA 24 mm
Shimano CN-M6100
Focus Gravel Bar, alloy, 70 mm, 114 mm, 16°
FOCUS C.I.S. 2.0 integrated, -8°, with Garmin / Wahoo-Mount
Shimano GRX 610
Shimano GRX 610
Shimano RT54, front: 180 mm (Size L-XL), 160 mm (Size XS-M) / rear: 160 mm
FOCUS
Carbon, 27.2 mm, set-back: 15 mm
10.4
M (510 - 530 mm), M/L (540 - 550 mm)
Aluminum Alloy
Mens / UNI
2x12
2026
Purple
Gravel and Bikepacking
The wheel manufacturer reserves the right to change the wheel specifications without any reason. In exceptional cases, the delivered product may differ from the stated specifications and images due to improved availability or functionality of the wheel.
