A gravel bike with a carbon frame and fork, equipped with a SRAM Rival E1 XPLR AXS 1x13 groupset, Zipp 303 XPLR S wheels, and a weight starting at 8.6 kg.
Detailed Description
Focus is a renowned German bicycle brand with a long tradition in developing high-performance road, gravel, and mountain bikes. It builds on precise engineering, innovative technologies, and emphasis…
More about the brand FocusA gravel bike with a carbon frame and fork, equipped with a SRAM Rival E1 XPLR AXS 1x13 groupset, Zipp 303 XPLR S wheels, and a weight starting at 8.6 kg.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
Some parts of this page are translated automatically, so please excuse any imperfections.

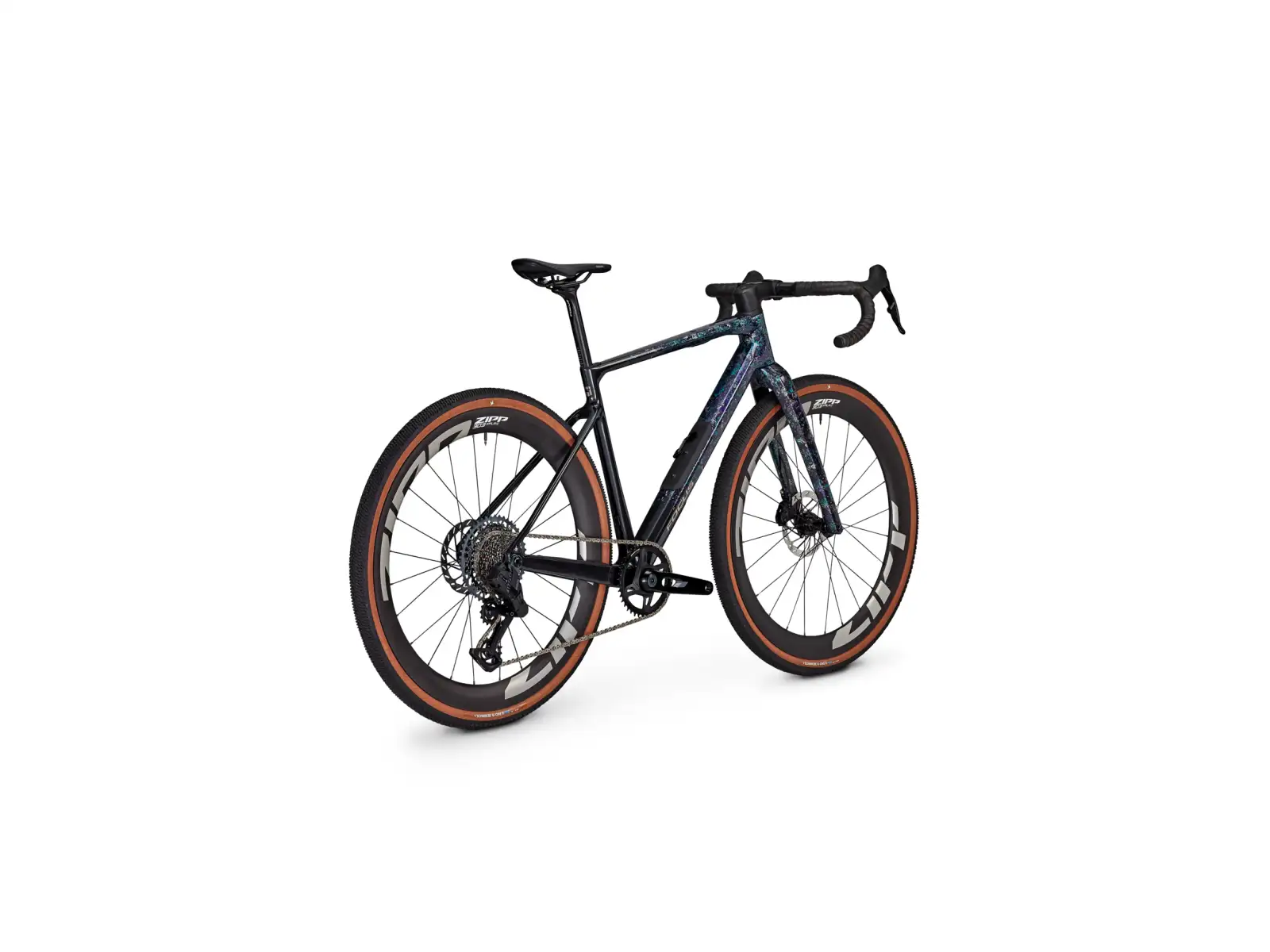

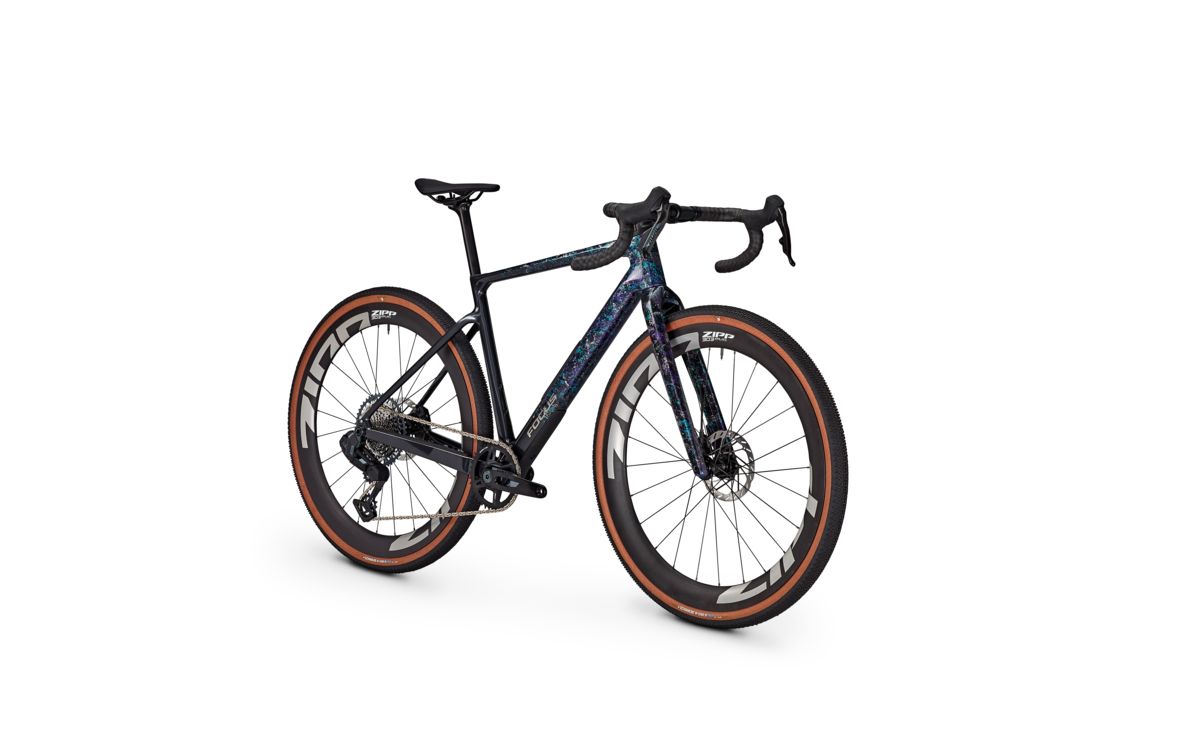

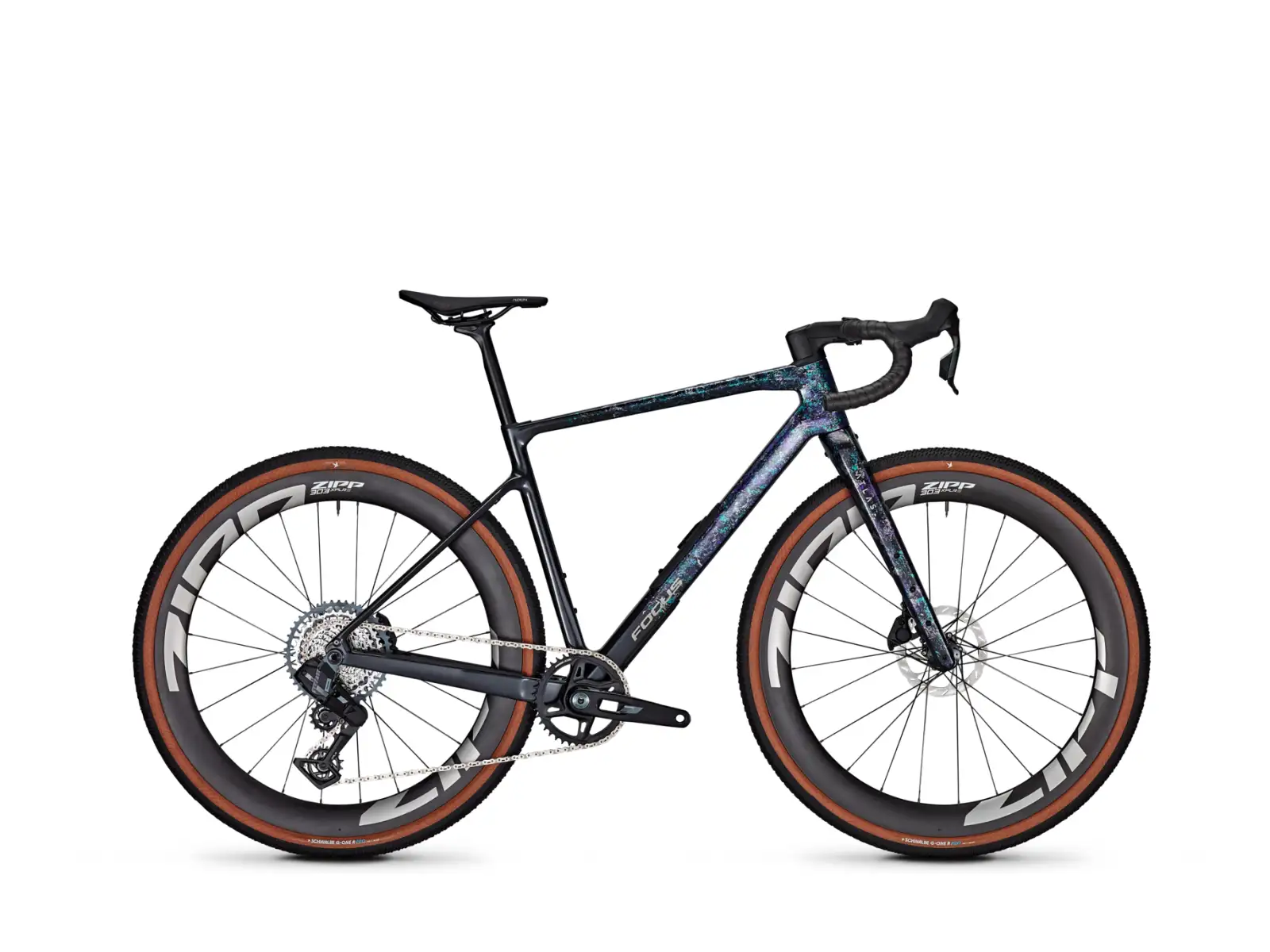

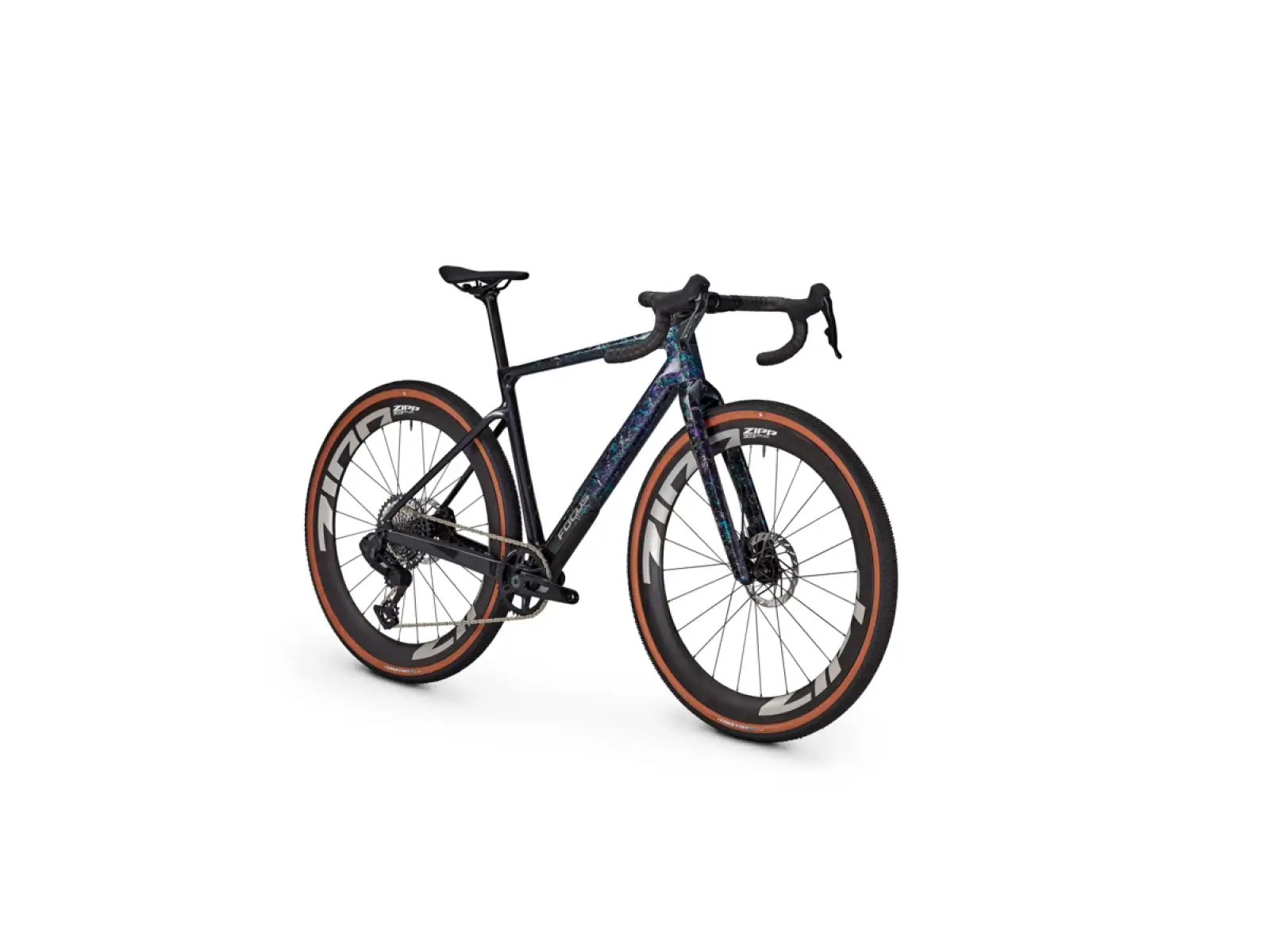

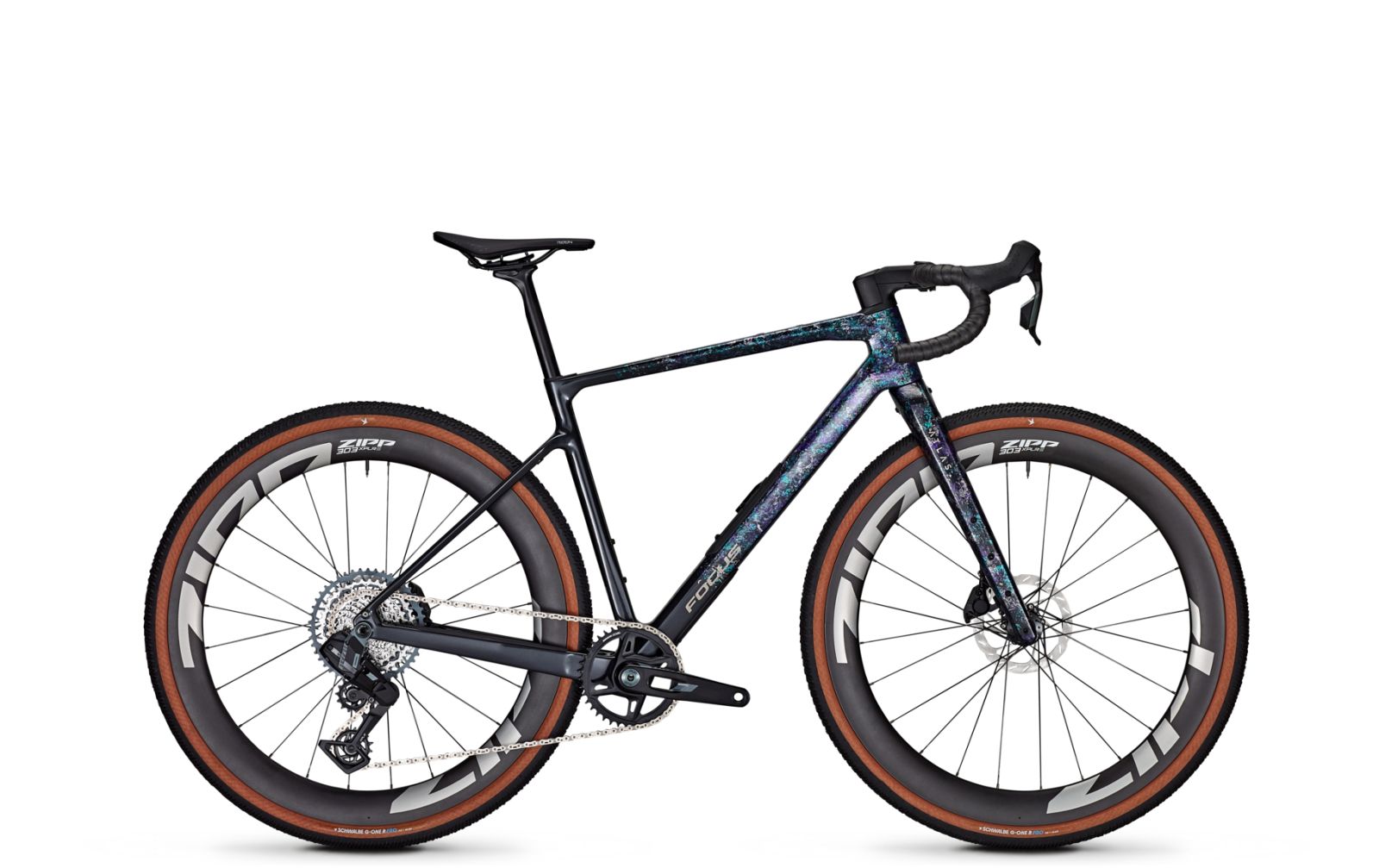

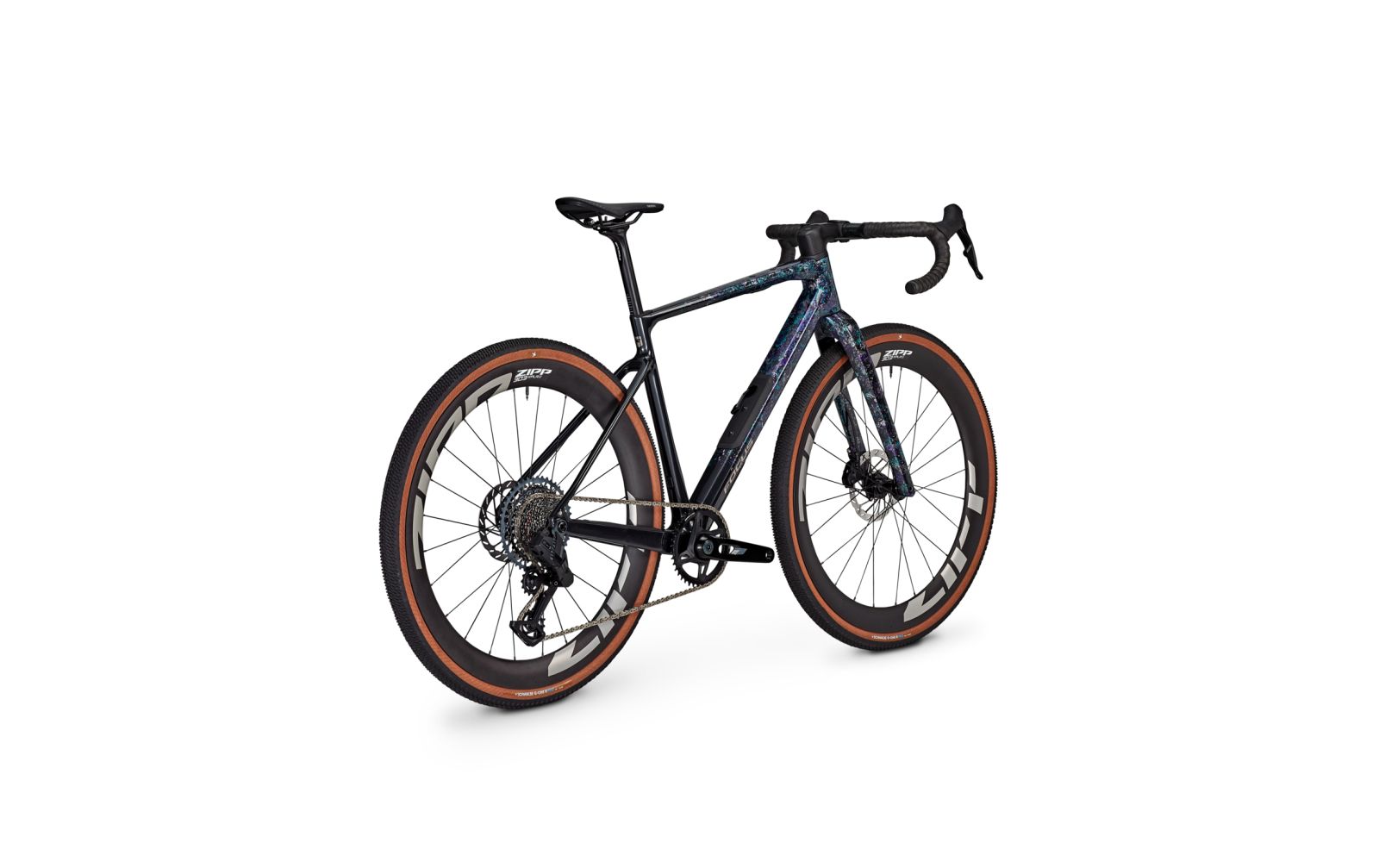

Focus Atlas 8.9 Spaceclouds is a gravel bike built for fast riding on asphalt and gravel, as well as multi-day bikepacking. It’s a 2026 model year in a higher performance class, based on a carbon platform with wireless shifting. It focuses on efficient power transfer and compatibility with tubeless tires.
The frame is made from a carbon composite with internal cable routing and an integrated cockpit in the FOCUS C.I.S. system. The ACROS IS52/IS52 headset supports a clean layout and protects the routing around the head tube area. The carbon fork is designed for disc brakes and a 12 mm thru-axle, which improves steering precision. The concept matches gravel and bikepacking use—stability with a loaded bike while maintaining an efficient riding position.
Drivetrain: Shifting is SRAM Rival E1 in a 1x13 setup with a wireless SRAM Rival E1 XPLR AXS rear derailleur. The SRAM Rival E1 crankset has 40 teeth, and the SRAM XG-1351 XPLR cassette offers a 10–46 range.
Brakes: SRAM Rival E1 disc brakes use a flat mount interface. The fork is ready for a 160 mm rotor.
Wheels and tires: Zipp 303 XPLR S wheelset is carbon and uses the 32-622 size with a taller rim profile. Schwalbe G-One R Pro tires in 45-622 are tubeless ready.
Cockpit: Zipp Service Course SL 70 XPLR handlebars are made from an aluminum alloy and feature a gravel shape with flared drops. The integrated FOCUS C.I.S. 2.0 stem has a -8° angle and a mount for Garmin or Wahoo.
The carbon frame and fork deliver high torsional stiffness, which is noticeable when accelerating out of the saddle and when climbing out of the saddle. The combination of a 1x13 drivetrain and a 10–46 cassette provides a wide gear range without a front derailleur and simplifies operation in variable terrain. The 45 mm tires in a tubeless setup increase comfort on rough gravel and improve traction when braking through corners. The 700c wheels with gravel rims support stability at higher speeds and predictable line holding on broken surfaces.
Focus Atlas 8.9 Spaceclouds is designed for experienced riders who want a gravel bike for sporty training as well as longer trips with gear. With wireless shifting and carbon wheels, it targets riders who prioritize efficiency and precise control over long distances. Compared to aluminum gravel bikes in the same category, it offers lower weight and greater cockpit integration.

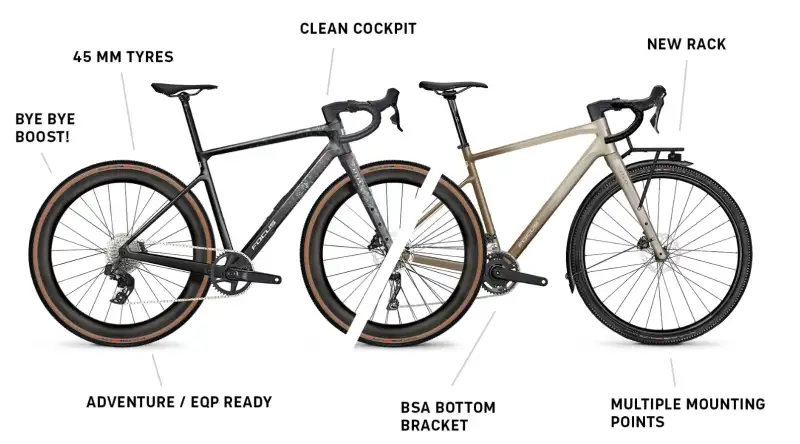

The designers reduced the weight of both frames and optimized their geometry to provide a nimbler riding performance. But that's not all: both gravel models can now handle a maximum system weight of 135 kg. They allow for the use of tires up to 48 mm (series 6) or 45 mm (series 8) and up to 53 mm (for both series) on the fork, and they also offer a large number of mounting points for bikepacking equipment. All versions now feature a clean cockpit thanks to the C.I.S. stem. One of the best features of the ATLAS model is that fitting it with fenders or racks is a breeze. The rack can be mounted on both series, and the new addition is a front rack, giving the bike that trendy look. It can be loaded with luggage up to 5 kg. It is not approved for use with the previous version of the ATLAS model. You can distinguish between the two models by checking if the seatpost clamp is integrated into the top tube (new ATLAS model) or not (old ATLAS model).
EAN: 4060908145094
Manufacturer: FOCUS & Kalkhoff Holding GmbH, Europa-Allee 26, D - 49685 Emstek, +49 (0)4473 9317-0, info@kalkhoff-bikes.com, www.focus-bikes.com
Carbon
ACROS IS52 /IS52 (ICR), FOCUS C.I.S. Integrated
Carbon technologie, disc, 142x12 mm thru axle, flat mount 160 mm
Spaceclouds
Zipp 303 XPLR S, carbon, rim height: 54 mm, width: 32-622
Schwalbe G-One R Pro, super race, tubeless ready, 45-622
SRAM Rival E1
SRAM Rival E1 XPLR AXS, 13-speed
SRAM Rival E1, 40 T
SRAM XG-1351 XPLR, 10-46T
Zipp Service Course SL 70 XPLR, alloy, 70 mm, 115 mm, 5° with 11° drop outsweep
FOCUS C.I.S. 2.0 integrated, -8°, with alloy Garmin / Wahoo-Mount
SRAM Rival E1
fi'zi:k Ridon X5
Carbon, 27.2 mm, set-back: 11 mm
Prep Pocket including Prep Pack
from 8.6 kg
M (510 - 530 mm)
Carbon
Mens / UNI
1x13
2026
Black
Gravel and Bikepacking
The wheel manufacturer reserves the right to change the wheel specifications without any reason. In exceptional cases, the delivered product may differ from the stated specifications and images due to improved availability or functionality of the wheel.
